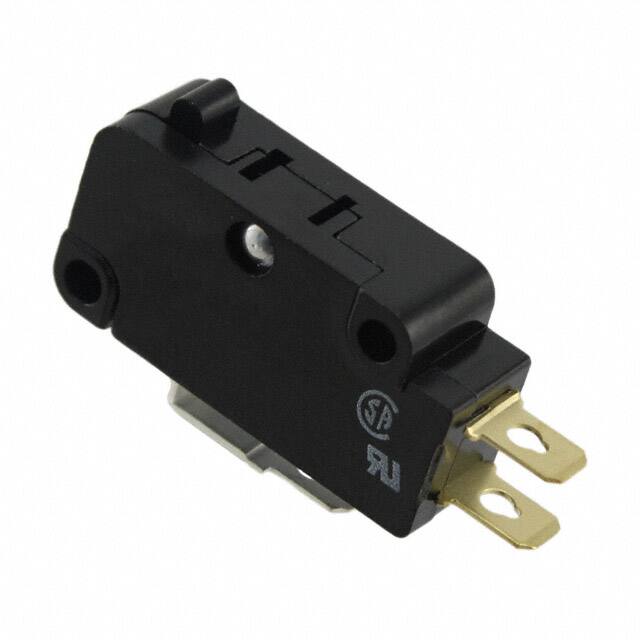

D2MV-01-1C2

Teknik Özellikler

Actuator Type

Round (Pin Plunger)

Differential Travel

0.010 (0.25mm)

Akım Değeri

100mA

Parça Durumu

Active

Body Breadth

10.3 mm

Switch Function

On-Mom

Fabrika Tedarik Süresi

7 Weeks

Mechanical Life

10,000,000 Cycles

Montaj Tipi

Chassis Mount

Actuator Travel

2.5 mm

Body Length Or Diameter

31.8mm

Current Rating Amps

100mA AC/DC

Operating Force

25gf

Nem Hassasiyeti (MSL)

1 (Unlimited)

Electricallife

1,000,000 Cycles

Terminal

Solder

Operating Position

0.579 (14.7mm)

Contact Currentdcmax

0.1A

Çalışma Sıcaklığı

-25°C~80°C

Circuit

SPDT

Pretravel

0.047 (1.2mm)

Overtravel

0.051 (1.3mm)

Pretravelmax

1.2 mm

Yayın Yılı

2012

Voltage Rated Dc

30V

Seri

D2MV

Ambalaj

Bulk

Body Height

15.9mm

Ingress Protection

IP40

Voltage Rated Ac

125V

Switch Type

SNAP ACTING/LIMIT SWITCH

Contact Currentacmax

0.1A

Montaj

Chassis Mount

RoHS Durumu

RoHS Compliant

ECCN Kodu

EAR99

Release Force

1.020gf

Contact Ac Max Rating R Load

.1A@125VAC

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

HTS Kodu

8536.50.70.00
