Adet bazlı fiyat
- 1+ adet$16.58
- 10+ adet$15.64
- 100+ adet$14.76
- 500+ adet$13.92
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

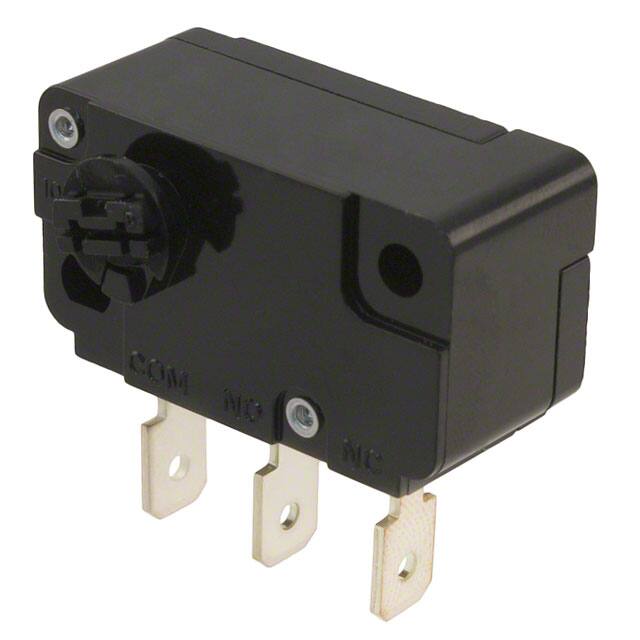

Teknik Özellikler
- Contact Currentacmax
- 0.5A
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Contact Materials
- Gold
- ECCN Kodu
- EAR99
- RoHS Durumu
- RoHS Compliant
- Contact Current Rating
- 500mA
- Montaj
- Chassis Mount, Screw
- Seri
- D2MC
- Ambalaj
- Bulk
- Max Voltage Rating Dc
- 30V
- Voltage Rated Ac
- 125V
- Ingress Protection
- IP40
- Depth
- 18.2mm
- Body Height
- 17.5mm
- Orientation
- Straight
- HTS Kodu
- 8536.50.70.00
- Terminal Stili
- Quick Connect - 0.205 (5.2mm)
- Contact Ac Max Rating R Load
- .5A@125VAC
- Release Force
- 0.006gfm
- Weight
- 10.000011g
- Overtravel
- 17°
- Voltage Rated Dc
- 30V
- Yayın Yılı
- 2004
- Operating Force
- 0.051gfm
- Nem Hassasiyeti (MSL)
- Not Applicable
- Contact Resistance
- 100mOhm
- Contact Dc Max Rating R Load
- .5A@30VDC
- Current Rating Amps
- 500mA AC/DC
- Çalışma Sıcaklığı
- -25°C~80°C
- Contact Currentdcmax
- 0.5A
- Circuit
- SPDT
- Pretravel
- 21°
- Max Voltage Rating Ac
- 125V
- Terminal
- Quick Connect
- Electricallife
- 100,000 Cycles
- Kurşunsuz
- Lead Free
- Reach Svhc
- No SVHC
- Parça Durumu
- Active
- Max Current Rating
- 500mA
- Switch Function
- On-Mom
