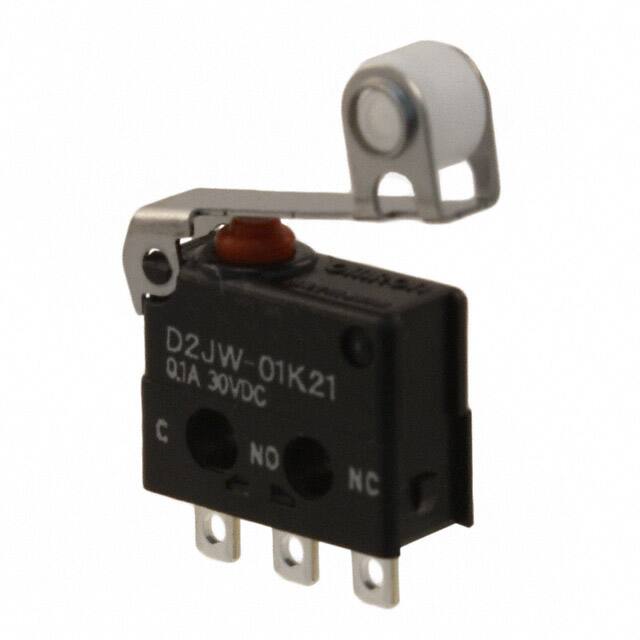

D2JW-01K21

Teknik Özellikler

Current Rating Amps

100mA DC

Differential Travel

0.020 (0.5mm)

Operating Position

0.575 (14.6mm)

Max Current Rating

100mA

Depth

5.3mm

HTS Kodu

8536.50.70.00

Terminal Stili

Solder Lug

Ratings

Dust Tight, IP50, IP67, Waterproof

Çalışma Sıcaklığı

-40°C~85°C

Overtravel

0.045 (1.1mm)

Seri

D2JW

Ambalaj

Bulk

Switch Type

SNAP ACTING/LIMIT SWITCH

Kurşunsuz Kodu

yes

Switch Function

On-Mom

Kılıf / Paket

100

Pretravel

0.205 (5.2mm)

Genişlik

5.3mm

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Actuator Type

Lever, Roller

Actuator Travel

6.3 mm

Body Height

9.4mm

Mechanical Life

1,000,000 Cycles

Terminal

Solder

Parça Durumu

Active

Montaj Tipi

Chassis Mount

Ingress Protection

IP67 - Dust Tight, Waterproof

Orientation

Straight

Voltage Rated Dc

30V

Insulation Resistance

100MOhm

Max Voltage Rating Dc

30V

Release Force

20gf

Electricallife

100,000 Cycles

Montaj

Brackets, Chassis Mount, Panel, Screw, Solder, Surface Mount

Operating Force

100gf

Akım Değeri

100mA

Contact Materials

Gold

Contact Current Rating

100mA

Nem Hassasiyeti (MSL)

1 (Unlimited)
