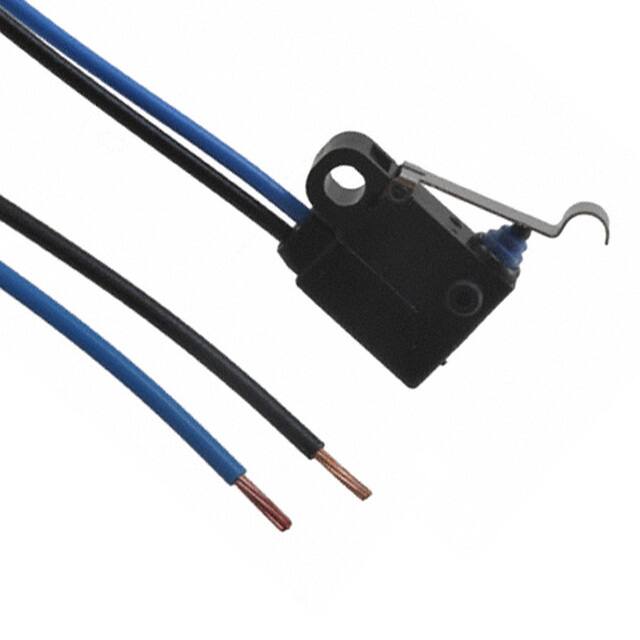

D2HW-C232MR

Teknik Özellikler

Ratings

Dust Tight, IP67, Waterproof

Terminal Stili

Wire Leads

Voltage Rated Dc

12V

HTS Kodu

8536.50.70.00

Throw Configuration

SPST

Overtravel

0.075 (1.9mm)

Voltage Rated Ac

125V

Max Voltage Rating Ac

125V

Operating Force

66gf

Montaj

Chassis Mount, Panel, Screw, Wire

Çalışma Sıcaklığı

-40°C~85°C

Electricallife

100,000 Cycles

Max Voltage Rating Dc

42V

Release Force

5.099gf

Differential Travel

0.020 (0.5mm)

Current Rating Amps

100mA AC 2A DC

Parça Durumu

Active

Contact Currentdcmax

2A

Orientation

Straight

Ingress Protection

IP67 - Dust Tight, Waterproof

Operating Position

0.440 (11.2mm)

Montaj Tipi

Chassis Mount

Contact Dc Max Rating R Load

2A@12VDC

Body Height

6.5mm

Yayın Yılı

2004

ECCN Kodu

EAR99

Actuator Travel

1.9 mm

Actuator Type

Lever, Simulated Roller

RoHS Durumu

RoHS Compliant

Body Length Or Diameter

18.5mm

Terminal

Wire Leads

Mechanical Life

1,000,000 Cycles

Reach Svhc

Unknown

Switch Function

On-Mom

Kurşunsuz Kodu

yes

Contact Current Rating

2A

Switch Type

SNAP ACTING/LIMIT SWITCH

Ambalaj

Bulk

Akım Değeri

2A

Contact Materials

Gold
