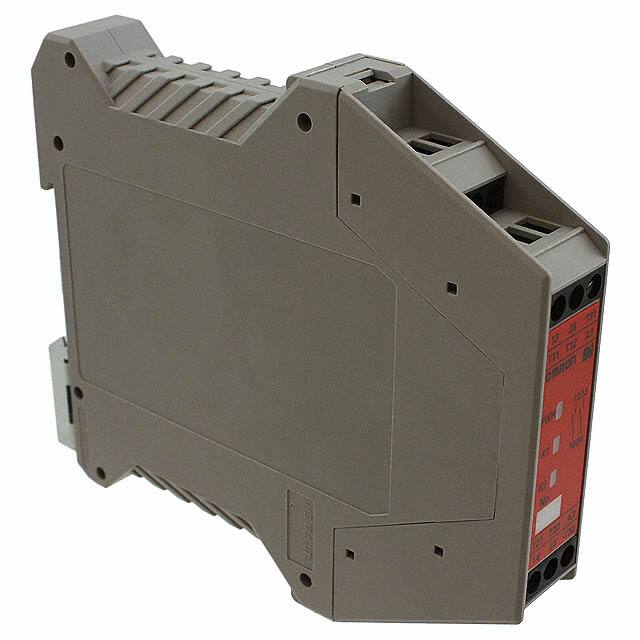

G9SB-2002-A

Teknik Özellikler

Body Length Or Diameter

112mm

Voltage Rated Dc

24V

Coil Power

1400mW

Contact Voltagedcmax

30V

Body Breadth

18 mm

Physical Dimension

112mm X 18mm X 100mm

Terminal

Screw

Yayın Yılı

2004

Release Time

10ms

Contact Voltageacmax

250V

Switching Current

5A

Parça Durumu

Obsolete

Max Current Rating

5A

Switching Voltage

250VAC 30VDC -Max

Contact Currentdcmax

5A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

DIN Rail

Kurşunsuz

Lead Free

Contact Ac Max Rating R Load

5A@250VAC

Contact Dc Max Rating R Load

5A@30VDC

Coil Voltage Ac

24V

Kontak Formu

DPST-NO (2 Form A)

Kılıf / Paket

Module

HTS Kodu

8536.41.00.20

Relay Action

MOMENTARY

Electricallife

100000 Cycle(s)

Throw Configuration

DPST

Çalışma Sıcaklığı

-25°C~55°C

Coil Voltage

24VAC/DC

Weight

115g

Operate Time

30ms

REACH Uyumluluk Kodu

unknown

Seri

G9SB

Reference Standard

CE; CSA; TUV; UL

Coilresistance

100MOhm

Coil Voltage Dc

24V

Body Height

100mm

Ambalaj

Bulk

Additional Feature

COIL POWER AC:1600 MW; COIL OPERATE VOLTAGE (AC): 20.4 V

RoHS Durumu

RoHS Compliant
