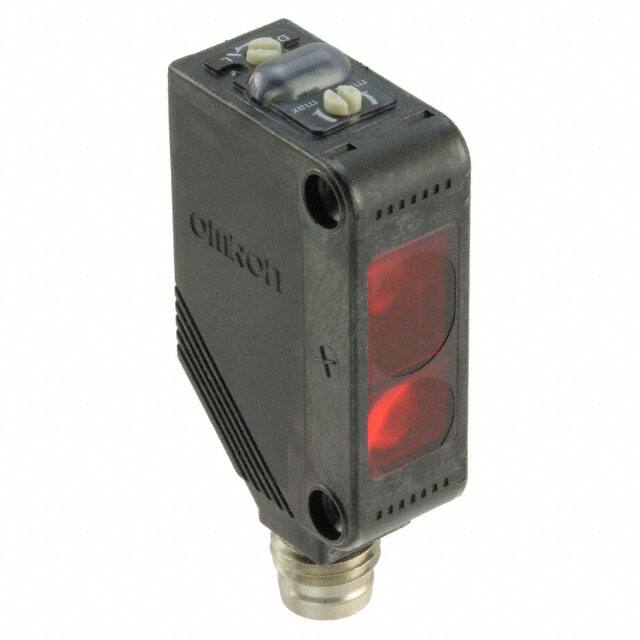

E3Z-LS66

Teknik Özellikler

Output Range

100mA

Parça Durumu

Active

Measurement Rangemin

20 mm

Output Interface Type

4-WIRE INTERFACE

Output Configuration

NPN - Dark-ON/Light-ON - Selectable

Body Length Or Diameter

20mm

Light Source

Red (680nm)

Sensorstransducers Type

LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

Sensing Method

Reflective, Diffuse

Nem Hassasiyeti (MSL)

1 (Unlimited)

Besleme Gerilimi

12V~24V

Çalışma Sıcaklığı

-25°C~55°C

Additional Feature

IP 67 REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Response Time

1ms

Mounting Feature

BOARD MOUNT

Seri

E3Z

Yüzey Montaj

NO

Body Height

31mm

Ingress Protection

IEC IP67

Connection Method

Connector

Measurement Rangemax

200 mm

REACH Uyumluluk Kodu

unknown

Çıkış Tipi

ANALOG CURRENT

Adjustment Type

Five-Turn Endless Adjuster

Algılama Mesafesi

0.787 ~ 7.874 (20mm ~ 200mm) ADJ

Yayın Yılı

2005

RoHS Durumu

RoHS Compliant

Body Breadth

10.8 mm

Fabrika Tedarik Süresi

2 Weeks
