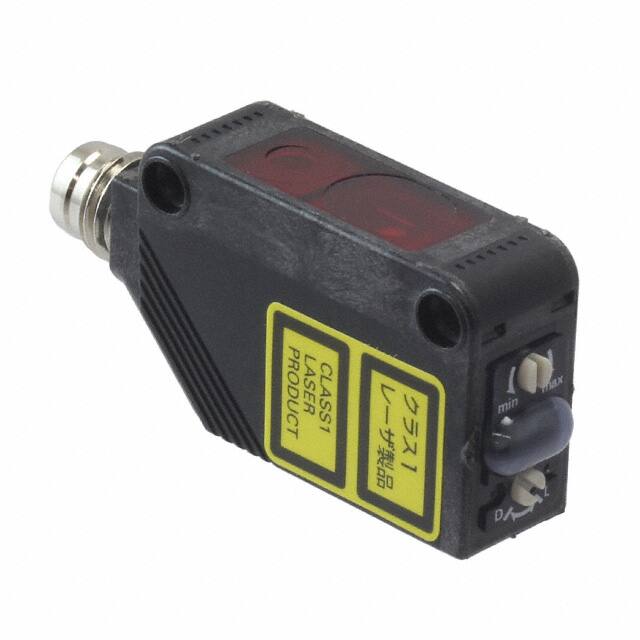

E3Z-LL86

Teknik Özellikler

Seri

E3Z

Ratings

IP67

Housing Material

PBT

Besleme Gerilimi

12V~24V

Response Time

1000 μs

Çalışma Sıcaklığı

-25°C~55°C

Ambalaj

Bulk

Body Length Or Diameter

20mm

Sensing Method

Reflective, Background Suppression

Nem Hassasiyeti (MSL)

1 (Unlimited)

Light Source

Red (655nm)

Sensorstransducers Type

LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

Min Supply Voltage Dc

12V

Output Configuration

PNP - Dark-ON/Light-ON - Selectable

Measurement Rangemin

20 mm

Turn On Delay Time

1 ms

Parça Durumu

Active

Fabrika Tedarik Süresi

2 Weeks

Montaj

Screw

Output Current

100mA

Reach Svhc

Unknown

RoHS Durumu

RoHS Compliant

Yayın Yılı

2002

Body Breadth

10.8 mm

Adjustment Type

Five-Turn Endless Adjuster

Pin Sayısı

4

Max Supply Voltage Dc

24V

Algılama Mesafesi

0.787 ~ 11.811 (20mm ~ 300mm) ADJ

Çıkış Tipi

PNP

Measurement Rangemax

300 mm

Connection Method

Connector

Ingress Protection

IEC IP67
