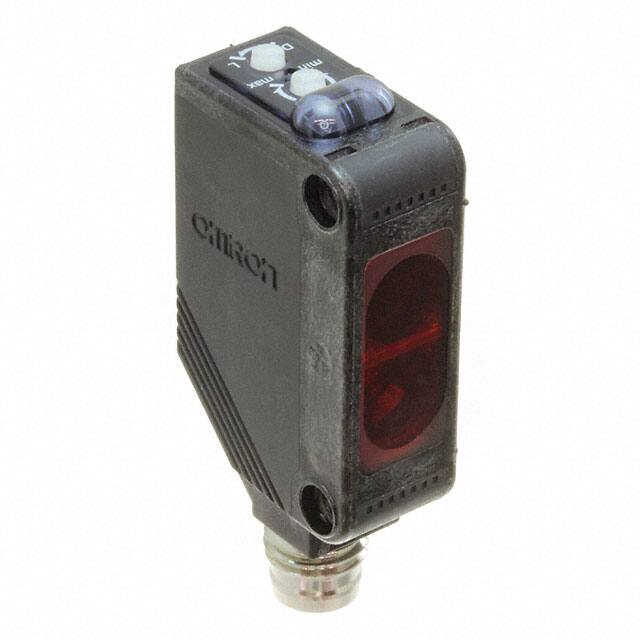

E3Z-D86

Teknik Özellikler

Seri

E3Z

Uzunluk

43.5mm

Housing Material

Polybutylene

Connector Type

Connector, Standard

Ratings

IP67, IP69K

Besleme Gerilimi

12V~24V

Additional Feature

IP 67 REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Çalışma Sıcaklığı

-30°C~55°C

Response Time

1000 μs

Max Voltage Rating Dc

24V

Genişlik

10.8mm

Light Source

Infrared (860nm)

Sensorstransducers Type

LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sensing Method

Reflective, Diffuse

Min Supply Voltage Dc

12V

Output Configuration

PNP - Dark-ON/Light-ON - Selectable

Output Range

100mA

Parça Durumu

Active

Turn On Delay Time

1 ms

Fabrika Tedarik Süresi

2 Weeks

Montaj

Screw

Output Current

100mA

Reach Svhc

Unknown

Yayın Yılı

2001

RoHS Durumu

RoHS Compliant

Yükseklik

20mm

Pin Sayısı

4

Adjustment Type

Single-Turn

Algılama Mesafesi

0.197 ~ 3.937 (5mm ~ 100mm) ADJ

Max Supply Voltage Dc

24V

Çıkış Tipi

ANALOG CURRENT

Measurement Rangemax

100 mm

Ingress Protection

IEC IP67

Connection Method

Connector
