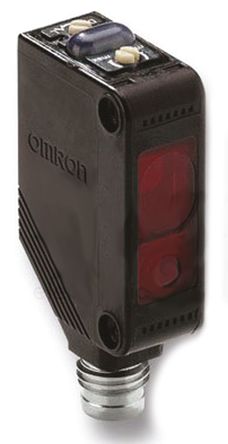

E3Z-D66

Teknik Özellikler

Çıkış Tipi

ANALOG CURRENT

Algılama Mesafesi

0.197 ~ 3.937 (5mm ~ 100mm) ADJ

Max Supply Voltage Dc

24V

Pin Sayısı

4

Yükseklik

33.2mm

Adjustment Type

Single-Turn

Ingress Protection

IEC IP67

Connection Method

Connector

Measurement Rangemax

100 mm

Reach Svhc

Unknown

Output Current

100mA

Montaj

Screw

Fabrika Tedarik Süresi

5 Weeks

Yayın Yılı

2001

RoHS Durumu

RoHS Compliant

Sensorstransducers Type

LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE

Light Source

Infrared (860nm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sensing Method

Reflective, Diffuse

Ambalaj

Bulk

Genişlik

10.8mm

Turn On Delay Time

1 ms

Parça Durumu

Active

Measurement Rangemin

5 mm

Output Range

100mA

Output Configuration

NPN - Dark-ON/Light-ON - Selectable

Min Supply Voltage Dc

12V

Housing Material

Polybutylene

Ratings

IP67

Uzunluk

20mm

Seri

E3Z

Çalışma Sıcaklığı

-30°C~55°C

Additional Feature

IP 67 REVERSE POLARITY, SHORT CIRCUIT PROTECTION

Response Time

1000 μs

Besleme Gerilimi

12V~24V
