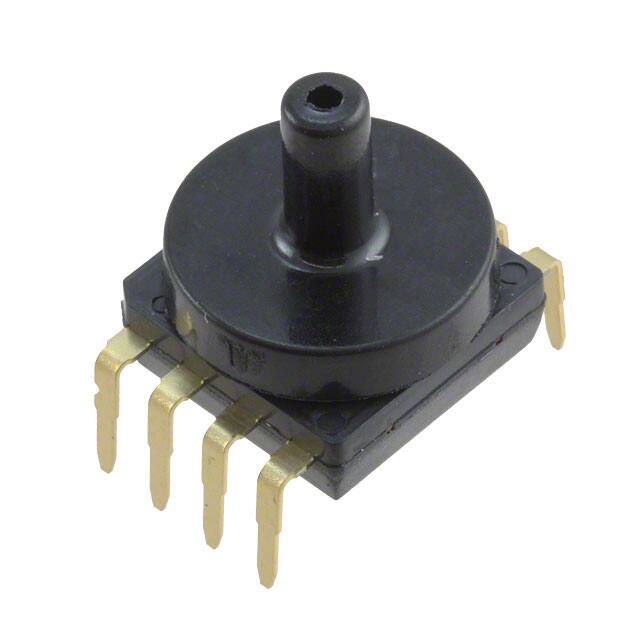

MPXV5010GC7U

Teknik Özellikler

Casepackage

DIP

Output

0.2 V ~ 4.7 V

RoHS Durumu

ROHS3 Compliant

Body Length Or Diameter

10.66mm

Uzunluk

10.79 mm

Terminal

PCB

Mounting Feature

THROUGH HOLE MOUNT

Weight

1.303795 g

Output Voltage

4.7 V

Besleme Gerilimi

4.75V~5.25V

Çıkış Tipi

Analog Voltage

Body Height

12.95mm

Reach Svhc

No SVHC

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Parça Durumu

Active

Sensitivity Mvv

450 mV/V

Applications

Board Mount

Çalışma Sıcaklığı

-40°C~125°C

Schedule B

8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000

Fabrika Tedarik Süresi

12 Weeks

Max Output Voltage

4.7 V

HTS Kodu

8542.31.00.01

Nominal Supply Current

5 mA

Pressure Rangemax

1.45 Psi

Accuracy

±5%

Kurşunsuz

Lead Free

Number Of Channels

1

Port Style

Barbless

Genişlik

10.79 mm

Terminal Stili

PC Pin

Body Breadth

10.66 mm

Operating Pressure

1.45PSI (10kPa)

Yükseklik

13.21 mm

RoHS

Compliant

ECCN Kodu

EAR99

Yayın Yılı

1998

Özellikler

Temperature Compensated

Yüzey Montaj

NO

Operating Supply Voltage

5 V

Max Supply Voltage

5.25 V
