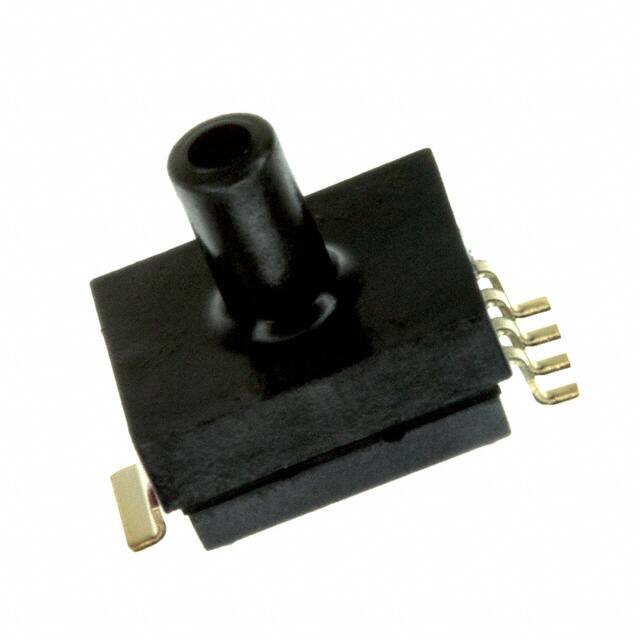

MPXM2202AS

Teknik Özellikler

RoHS Durumu

ROHS3 Compliant

Output

0 mV ~ 40 mV (10V)

ECCN Kodu

EAR99

Yayın Yılı

1998

Body Length Or Diameter

9.34mm

Body Breadth

7.31 mm

Operating Pressure

29.01PSI (200kPa)

Mounting Feature

SURFACE MOUNT

Accuracymax

1%

Yüzey Montaj

YES

Özellikler

Temperature Compensated

Besleme Gerilimi

10V~16V

Offsetnom

0MV

Çıkış Tipi

Wheatstone Bridge

Body Height

4.82mm

Seri

MPX2202

Port Size

Male - 0.12 2.97mm Tube

Sensitivity Mvv

0.2 mV/V

Parça Durumu

Active

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Response Time

1000 µs

Applications

Board Mount

Pressure Type

Absolute

HTS Kodu

8542.39.00.01

Çalışma Sıcaklığı

-40°C~125°C

Fabrika Tedarik Süresi

12 Weeks

Nem Hassasiyeti (MSL)

Not Applicable

Linearity

1 %

Maximum Pressure

58.02PSI (400kPa)

Pressure Rangemax

29 Psi

Kılıf / Paket

5-SMD Module

Terminal Stili

Gull Wing

Port Style

Barbless
