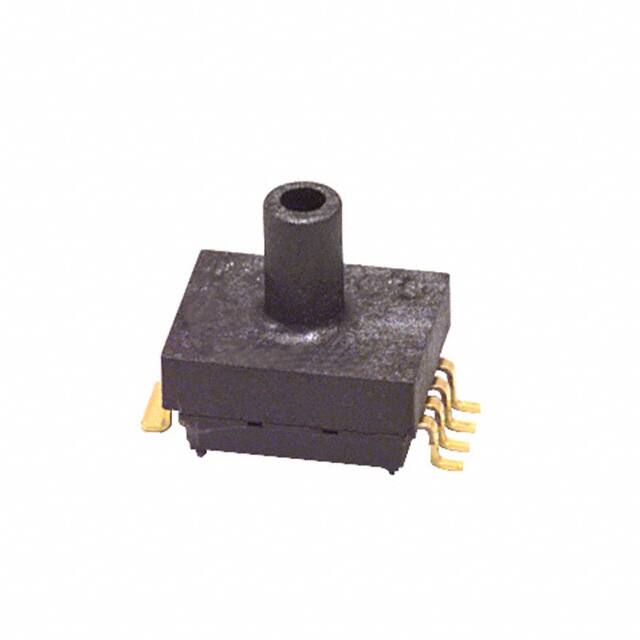

MPXM2010GST1

Teknik Özellikler

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Parça Durumu

Active

Port Size

Male - 0.12 2.97mm Tube

Sensitivity Mvv

2.5 mV/V

Seri

MPX2010

Ambalaj

Tape & Reel (TR)

Offsetnom

0MV

Çıkış Tipi

Wheatstone Bridge

Body Height

4.82mm

Besleme Gerilimi

10V~16V

Özellikler

Temperature Compensated

Yüzey Montaj

YES

Mounting Feature

SURFACE MOUNT

Operating Pressure

1.45PSI (10kPa)

Body Breadth

7.31 mm

Body Length Or Diameter

9.34mm

Yayın Yılı

2004

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Output

0 mV ~ 25 mV (10V)

Port Style

Barbless

Terminal Stili

Gull Wing

Kılıf / Paket

5-SMD Module

Maximum Pressure

10.88PSI (75kPa)

Pressure Rangemax

1.45 Psi

Linearity

1 %

Accuracy

±1%

Nem Hassasiyeti (MSL)

Not Applicable

Fabrika Tedarik Süresi

12 Weeks

Çalışma Sıcaklığı

-40°C~125°C

HTS Kodu

8542.39.00.01

Pressure Type

Vented Gauge

Applications

Board Mount

Response Time

1000 µs

Pressure Sensing Mode

GAGE
