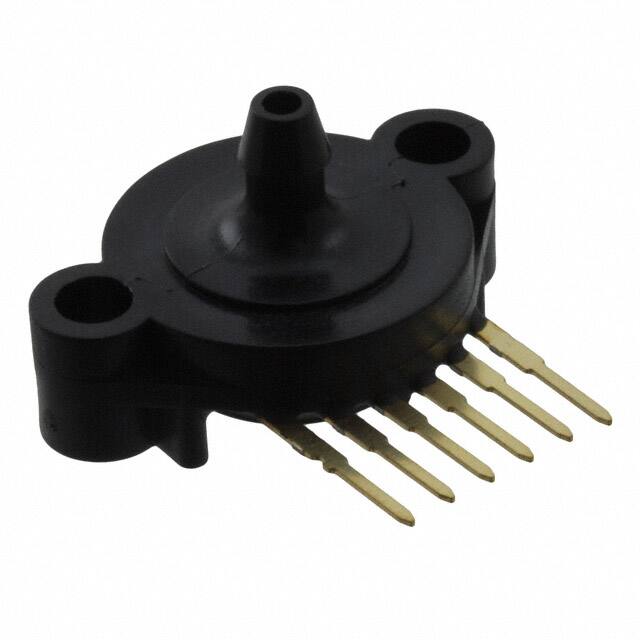

MPX5700ASX

Teknik Özellikler

Operating Pressure

2.18PSI ~ 101.53PSI (15kPa ~ 700kPa)

Body Breadth

16.25 mm

Body Length Or Diameter

27.94mm

Yayın Yılı

1998

ECCN Kodu

EAR99

Output

0.2 V ~ 4.7 V

RoHS Durumu

ROHS3 Compliant

Özellikler

Temperature Compensated

Yüzey Montaj

NO

Mounting Feature

THROUGH HOLE MOUNT

Seri

MPX5700

Offsetnom

0.20V

Çıkış Tipi

Analog Voltage

Body Height

19.05mm

Besleme Gerilimi

4.75V~5.25V

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Parça Durumu

Active

Port Size

Male - 0.19 4.93mm Tube

Sensitivity Mvv

6.4 mV/V

Applications

Board Mount

Response Time

1000 μs

Fabrika Tedarik Süresi

12 Weeks

Çalışma Sıcaklığı

-40°C~125°C

HTS Kodu

8542.39.00.01

Pressure Type

Absolute

Pressure Rangemax

101.5 Psi

Maximum Pressure

406.11PSI (2800kPa)

Linearity

2.5 %

Accuracy

±2.5%

Nem Hassasiyeti (MSL)

Not Applicable

Port Style

Barbed

Terminal Stili

PC Pin

Housing

PLASTIC

Kılıf / Paket

6-SIP Module
