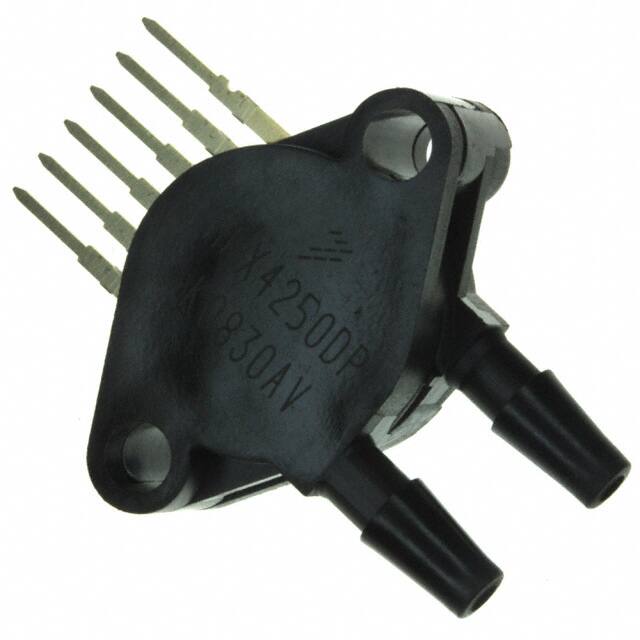

MPX5050DP

Teknik Özellikler

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Output

0.2 V ~ 4.7 V

Yayın Yılı

2004

Body Length Or Diameter

29.46mm

Operating Pressure

7.25PSI (50kPa)

Body Breadth

10.67 mm

Yüzey Montaj

NO

Mounting Feature

THROUGH HOLE MOUNT

Özellikler

Temperature Compensated

Besleme Gerilimi

4.75V~5.25V

Body Height

28.7mm

Çıkış Tipi

Analog Voltage

Offsetnom

0.20V

Seri

MPX5050

Sensitivity Mvv

90 mV/V

Port Size

Male - 0.19 4.93mm Tube Dual

Parça Durumu

Active

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Applications

Board Mount

Response Time

1000 µs

Pressure Type

Differential

HTS Kodu

8542.39.00.01

Çalışma Sıcaklığı

-40°C~125°C

Fabrika Tedarik Süresi

12 Weeks

Nem Hassasiyeti (MSL)

Not Applicable

Accuracy

±2.5%

Linearity

2.5 %

Maximum Pressure

29.01PSI (200kPa)

Pressure Rangemax

7.25 Psi

Kılıf / Paket

6-SIP Module

Terminal Stili

PC Pin

Housing

PLASTIC

Port Style

Barbed
