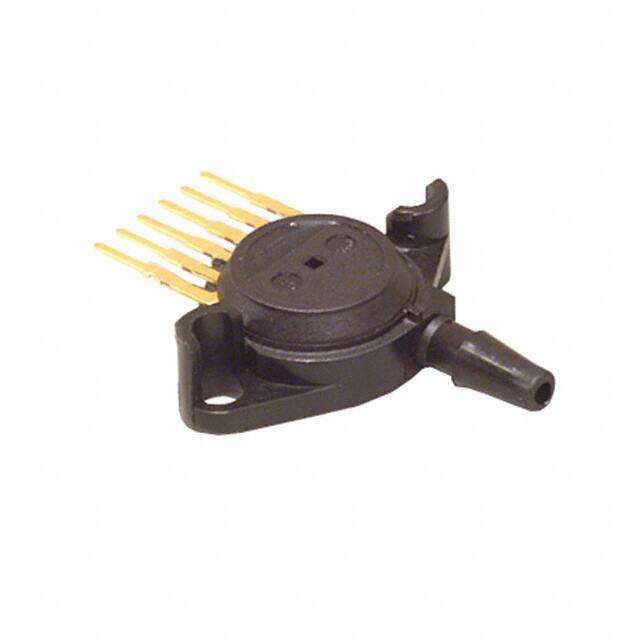

MPX4115AP

Teknik Özellikler

Response Time

1000 μs

Applications

Board Mount

Çalışma Sıcaklığı

-40°C~125°C

Fabrika Tedarik Süresi

12 Weeks

Pressure Type

Absolute

HTS Kodu

8542.31.00.01

Maximum Pressure

58.02PSI (400kPa)

Pressure Rangemax

16.7 Psi

Nem Hassasiyeti (MSL)

Not Applicable

Linearity

1.5 %

Port Style

Barbed

Kılıf / Paket

6-SIP Module

Housing

PLASTIC

Terminal Stili

PC Pin

Body Breadth

8 mm

Operating Pressure

2.18PSI ~ 16.68PSI (15kPa ~ 115kPa)

RoHS Durumu

ROHS3 Compliant

Output

0.2 V ~ 4.8 V

ECCN Kodu

EAR99

Yayın Yılı

2001

Body Length Or Diameter

29.46mm

Özellikler

Temperature Compensated

Accuracymax

1.5%

Mounting Feature

THROUGH HOLE MOUNT

Yüzey Montaj

NO

Seri

MPX4115A

Besleme Gerilimi

4.85V~5.35V

Body Height

28.7mm

Çıkış Tipi

Analog Voltage

Offsetnom

0.20V

Parça Durumu

Active

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Sensitivity Mvv

46 mV/V

Port Size

Male - 0.19 4.93mm Tube
