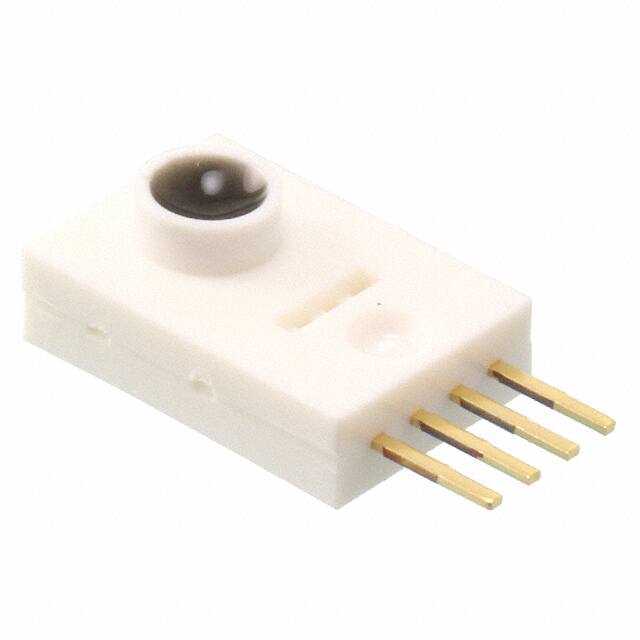

MPX2300DT1

Teknik Özellikler

Port Style

No Port

Kılıf / Paket

4-SSIP Module

Terminal Stili

PC Pin

Maximum Pressure

125PSI (861.84kPa)

Pressure Rangemax

5.8 Psi

Accuracy

±1.5%

Nem Hassasiyeti (MSL)

Not Applicable

Linearity

1.5 %

Çalışma Sıcaklığı

15°C~40°C

Fabrika Tedarik Süresi

12 Weeks

Pressure Type

Differential

HTS Kodu

8542.39.00.01

Applications

Board Mount

Response Time

1000 μs

Parça Durumu

Active

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Sensitivity Mvv

0.005 mV/V

Ambalaj

Tape & Reel (TR)

Seri

MPX2300

Besleme Gerilimi

6V~10V

Body Height

9.14mm

Çıkış Tipi

Wheatstone Bridge

Offsetnom

0MV

Özellikler

Temperature Compensated

Yüzey Montaj

NO

Mounting Feature

THROUGH HOLE MOUNT

Operating Pressure

5.8PSI (40kPa)

Body Breadth

3.68 mm

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Output

0 mV ~ 3.006 mV (6V)

Yayın Yılı

2011

Body Length Or Diameter

6.35mm
