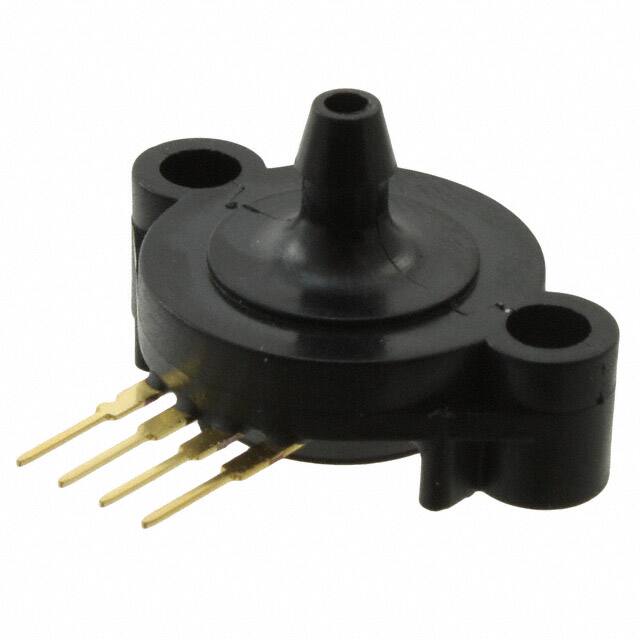

MPX2102ASX

Teknik Özellikler

Accuracy

±1%

Nem Hassasiyeti (MSL)

Not Applicable

Linearity

1 %

Pressure Rangemax

14.5 Psi

Maximum Pressure

58.02PSI (400kPa)

Kılıf / Paket

4-SIP Module

Housing

PLASTIC

Terminal Stili

PC Pin

Port Style

Barbed

Response Time

1000 µs

Applications

Board Mount

Pressure Type

Absolute

HTS Kodu

8542.31.00.01

Çalışma Sıcaklığı

-40°C~125°C

Fabrika Tedarik Süresi

12 Weeks

Besleme Gerilimi

10V~16V

Body Height

19.05mm

Çıkış Tipi

Wheatstone Bridge

Offsetnom

0MV

Seri

MPX2102

Sensitivity Mvv

0.4 mV/V

Port Size

Male - 0.19 4.93mm Tube

Parça Durumu

Active

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

RoHS Durumu

ROHS3 Compliant

Output

0 mV ~ 40 mV (10V)

ECCN Kodu

EAR99

Yayın Yılı

2004

Body Length Or Diameter

27.94mm

Body Breadth

16.25 mm

Operating Pressure

14.5PSI (100kPa)

Mounting Feature

THROUGH HOLE MOUNT

Yüzey Montaj

NO

Özellikler

Temperature Compensated
