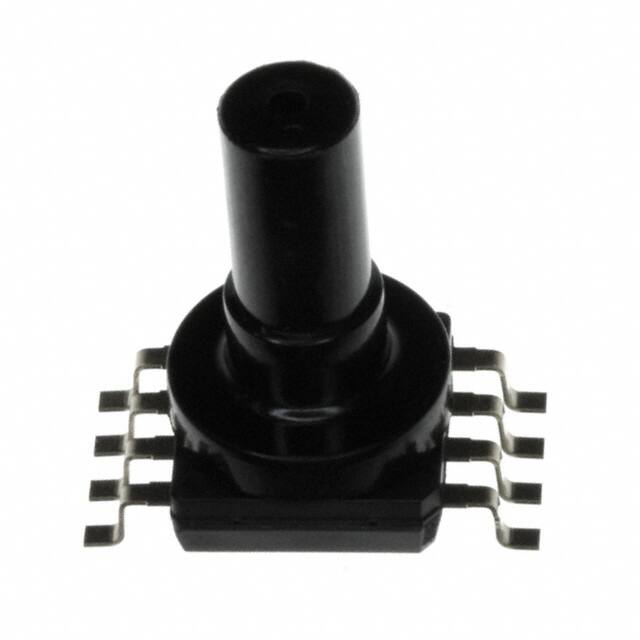

MPVZ5010GW6U

Teknik Özellikler

Terminal Stili

SMD (SMT) Tab

Output

0.2 V ~ 4.7 V

Port Size

Male - 0.22 5.59mm Tube

HTS Kodu

8542.31.00.01

Kılıf / Paket

8-SMD Module

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Operating Pressure

1.45PSI (10kPa)

Body Height

19.69mm

Sensitivity Mvv

450 mV/V

Seri

MPVZ5010G

Yayın Yılı

1998

Maximum Pressure

5.8PSI (40kPa)

Yüzey Montaj

YES

Offsetnom

0.20V

Applications

Board Mount

Pressure Sensing Mode

GAGE

Port Style

Barbless

Pressure Rangemax

1.45 Psi

Çalışma Sıcaklığı

-40°C~125°C

Mounting Feature

SURFACE MOUNT

Nem Hassasiyeti (MSL)

Not Applicable

Özellikler

Temperature Compensated

Housing

PLASTIC

Besleme Gerilimi

4.75V~5.25V

Pressure Type

Vented Gauge

Body Length Or Diameter

10.67mm

Response Time

1000 µs

Çıkış Tipi

Analog Voltage

Fabrika Tedarik Süresi

12 Weeks

Body Breadth

10.67 mm

Parça Durumu

Active

Accuracymax

5%

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE
