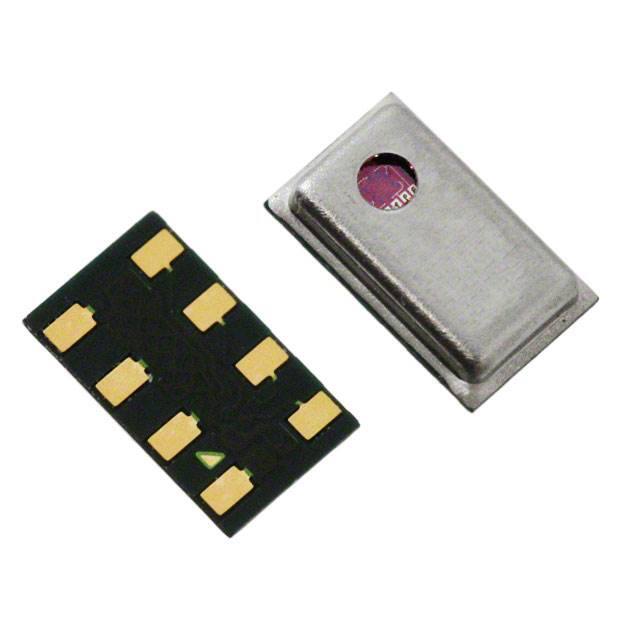

MPL115A2T1

Teknik Özellikler

Accuracy

±0.145PSI (±1kPa)

Kılıf / Paket

8-TLGA

Terminal Stili

SMD (SMT) Tab

Parça Durumu

Not For New Designs

RoHS Durumu

ROHS3 Compliant

Besleme Gerilimi

2.375V~5.5V

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

12 Weeks

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Çıkış Tipi

I2C

Body Breadth

3 mm

Body Length Or Diameter

5mm

Body Height

1.2mm

Output

10 b

Number Of Bits

10

Özellikler

Shutdown Mode, Standby Mode

Operating Pressure

7.25PSI ~ 16.68PSI (50kPa ~ 115kPa)

Applications

Board Mount

HTS Kodu

8542.39.00.01

Response Time

600 µs

Pressure Type

Absolute

Additional Feature

TEMPERATURE COMPENSATED

Yayın Yılı

2008

ECCN Kodu

EAR99

Port Style

No Port

Yüzey Montaj

YES

Maximum Pressure

145.04PSI (1000kPa)

Mounting Feature

SURFACE MOUNT

Pressure Rangemax

16.675 Psi

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)
