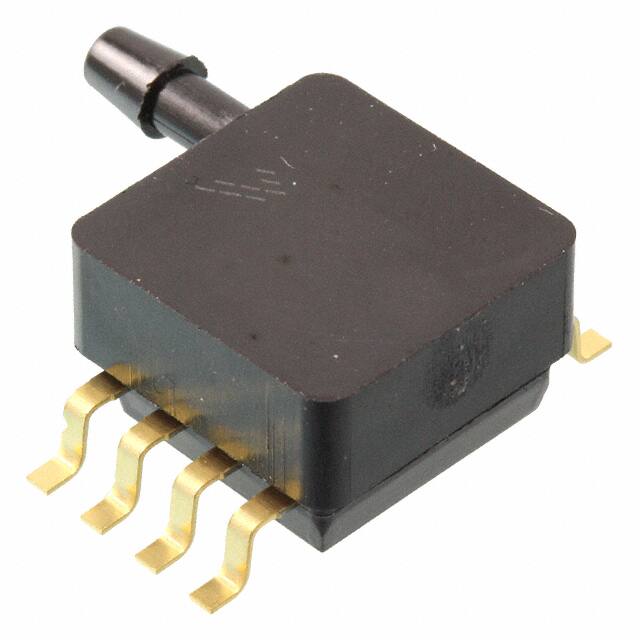

MP3V5050GP

Teknik Özellikler

Response Time

1000 µs

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~125°C

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Offsetnom

0.12V

Fabrika Tedarik Süresi

12 Weeks

Pressure Rangemax

7.25 Psi

Pressure Type

Vented Gauge

Body Height

7.365mm

Çıkış Tipi

Analog Voltage

HTS Kodu

8542.31.00.01

Pressure Sensing Mode

GAGE

Mounting Feature

SURFACE MOUNT

Nem Hassasiyeti (MSL)

Not Applicable

Yüzey Montaj

YES

Output

0.06 V ~ 2.82 V

Applications

Board Mount

Besleme Gerilimi

2.7V~3.3V

Terminal Stili

Gull Wing

Body Breadth

12.06 mm

Port Style

Barbless

RoHS Durumu

ROHS3 Compliant

Kılıf / Paket

8-SMD, Gull Wing, Side Port

Özellikler

Temperature Compensated

Port Size

Male - 0.13 3.17mm Tube

ECCN Kodu

EAR99

Maximum Pressure

29.01PSI (200kPa)

Operating Pressure

7.25PSI (50kPa)

Sensitivity Mvv

54 mV/V

Seri

MP3V5050

Body Length Or Diameter

12.06mm

Yayın Yılı

2008

Housing

PLASTIC

Accuracy

±2.5%
