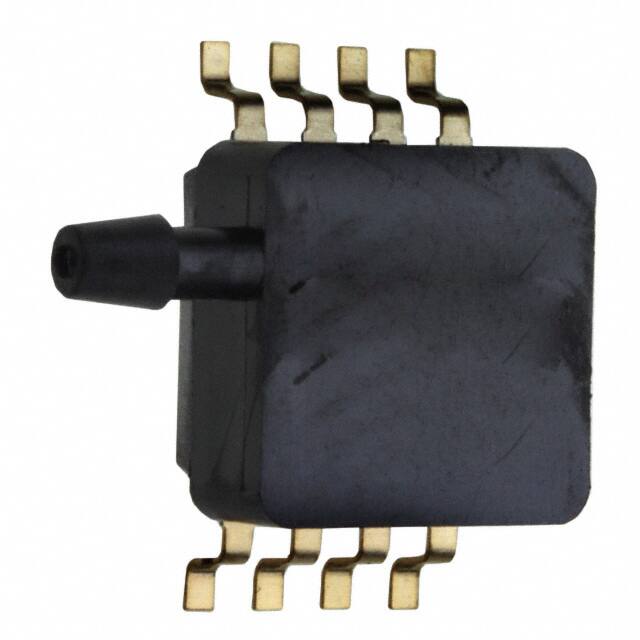

MP3V5004GP

Teknik Özellikler

Port Style

Barbed

Applications

Board Mount

Besleme Gerilimi

2.7V~3.3V

Body Breadth

12.06 mm

Terminal Stili

Gull Wing

Yüzey Montaj

YES

Output

0.6 V ~ 3 V

Seri

MP3V5004

Yayın Yılı

2004

Body Length Or Diameter

12.06mm

Accuracy

±2.5%

Housing

PLASTIC

Operating Pressure

0.57PSI (3.92kPa)

Maximum Pressure

2.32PSI (16kPa)

Sensitivity Mvv

5.9 mV/V

Özellikler

Temperature Compensated

Port Size

Male - 0.13 3.17mm Tube

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Kılıf / Paket

8-SMD, Gull Wing, Side Port

Pressure Rangemax

0.5684 Psi

Pressure Type

Vented Gauge

Çalışma Sıcaklığı

0°C~85°C

Parça Durumu

Active

Offsetnom

5.9V

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Fabrika Tedarik Süresi

12 Weeks

Mounting Feature

SURFACE MOUNT

Nem Hassasiyeti (MSL)

Not Applicable

Çıkış Tipi

Analog Voltage

HTS Kodu

8542.39

Pressure Sensing Mode

GAGE

Body Height

7.36mm
