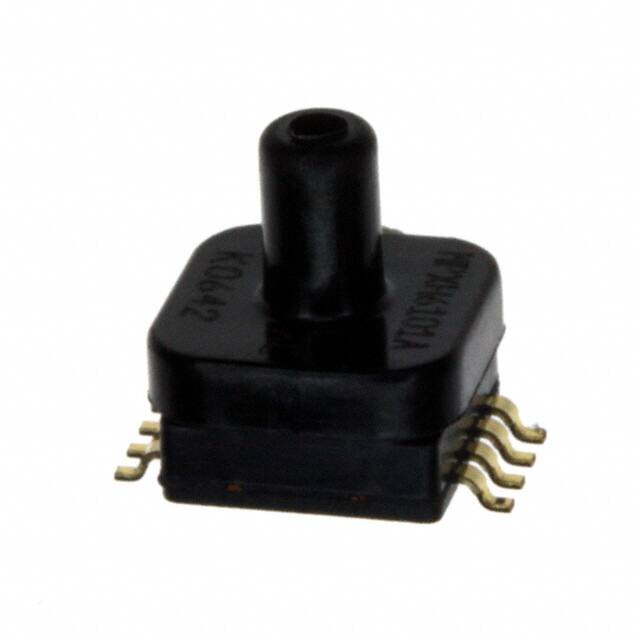

MP3H6115AC6T1

Teknik Özellikler

Housing

PLASTIC

Accuracy

±1.5%

Body Length Or Diameter

8.05mm

Yayın Yılı

2008

Operating Pressure

2.18PSI ~ 16.68PSI (15kPa ~ 115kPa)

Maximum Pressure

58.02PSI (400kPa)

Sensitivity Mvv

27 mV/V

Port Size

Male - 0.13 3.3mm Tube

Özellikler

Temperature Compensated

ECCN Kodu

EAR99

Kılıf / Paket

8-SOIC (0.335, 8.50mm Width), Top Port

RoHS Durumu

ROHS3 Compliant

Port Style

Barbless

Applications

Board Mount

Terminal Stili

Gull Wing

Body Breadth

8.05 mm

Besleme Gerilimi

2.7V~3.3V

Yüzey Montaj

YES

Output

0.12 V ~ 2.8 V

Nem Hassasiyeti (MSL)

Not Applicable

Linearity

1.5 %

Mounting Feature

SURFACE MOUNT

Ambalaj

Tape & Reel (TR)

Çıkış Tipi

Analog Voltage

HTS Kodu

8542.31.00.01

Body Height

9.65mm

Pressure Rangemax

16.7 Psi

Pressure Type

Absolute

Çalışma Sıcaklığı

-40°C~125°C

Parça Durumu

Active

Fabrika Tedarik Süresi

12 Weeks

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Offsetnom

0.12V

Response Time

1000 µs
