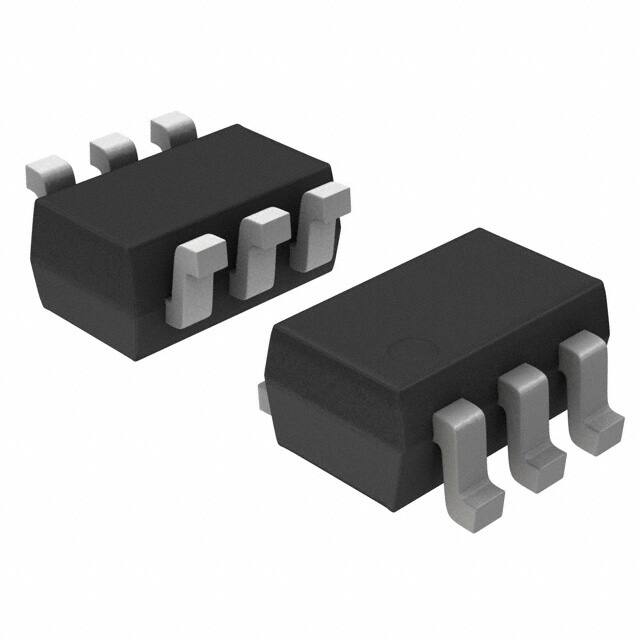

BF1205C,115

Teknik Özellikler

Frekans

400MHz

Yüzey Montaj

YES

Kılıf / Paket

6-TSSOP, SC-88, SOT-363

Current Test

19mA

Source Url Status Check Date

2013-06-14 00:00:00

Transistor Element Material

SILICON

Number Of Elements

2

Noise Figure

1.3dB

Tepe Reflow Sıcaklığı (°C)

260

Ambalaj

Tape & Reel (TR)

Drain Currentmax Abs Id

0.03A

Transistor Application

SWITCHING

Operating Mode

ENHANCEMENT MODE

Transistor Type

N-Channel Dual Gate

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Rating Amps

30mA

Configuration

COMPLEX

Parça Durumu

Obsolete

Power Dissipationmax Abs

0.18W

Qualification Status

Not Qualified

Operating Temperature Max

150°C

Temel Parça No

BF1205

Voltage Test

5V

Pin Sayısı

6

Nominal Gerilim

6V

Yayın Yılı

2012

ECCN Kodu

EAR99

Gain

30dB

Ds Breakdown Voltagemin

6V

JESD-609 Kodu

e3

Terminal Formu

GULL WING

Fet Technology

METAL-OXIDE SEMICONDUCTOR

Tepe Reflow Süresi (maks. sn)

40

RoHS Durumu

ROHS3 Compliant

Jesd30 Code

R-PDSO-G6

Terminal Sayısı

6

Terminal Kaplaması

Matte Tin (Sn)
