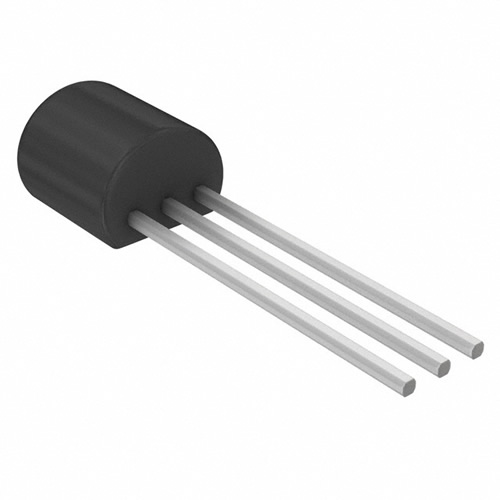

MAC97A8

Teknik Özellikler

Terminal Formu

THROUGH-HOLE

Number Of Terminals

3

Trigger Device Type

4 QUADRANT LOGIC LEVEL TRIAC

Voltage Rated Dc

600V

Igtmaxua

15000

ECCN Kodu

EAR99

Jesd30 Code

O-PBCY-T3

Vdrmv

600

Reference Standard

IEC-60134

Part Package Code

TO-92

Package Body Material

PLASTIC/EPOXY

Pin Sayısı

3

Operating Temperaturemax

125 °C

Temel Parça No

MAC97

Tepe Reflow Sıcaklığı (°C)

240

Additional Feature

HIGH RELIABILITY

Voltage Rating Dc

600 V

Dc Gate Trigger Currentmax

5 mA

Leakage Currentmax

0.1 mA

Configuration

SINGLE

Yükseklik

5.2 mm

Montaj Tipi

Through Hole

Casepackage

TO-92

Hold Current

10 mA

RoHS

Compliant

Akım Değeri

600 mA

Package Shape

ROUND

Onstate Voltagemax

1.9 V

Rms Current Irms

600mA

Operating Temperaturemin

-40 °C

Vrrmv

600

Kılıf / Paket

TO-226-3, TO-92-3 (TO-226AA)

RoHS Durumu

Non-RoHS Compliant

Ihs Manufacturer

ROCHESTER ELECTRONICS LLC

Number Of Elements

1

Current Hold Ih Max

10mA

Kurşunsuz

Lead Free

Rohs Code

No

Çalışma Sıcaklığı

-40°C~110°C TJ

Parça Durumu

Obsolete
