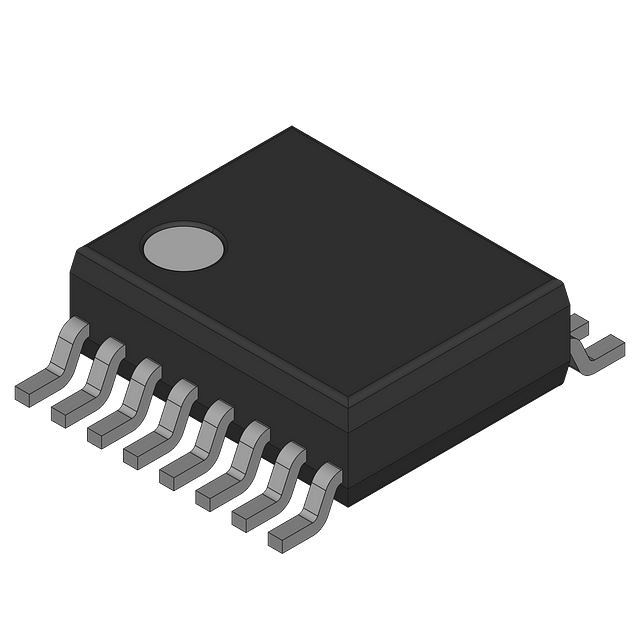

74HCT4052DB

Teknik Özellikler

Kurşunsuz

Lead Free

Max Supply Voltage

5.5 V

Tepe Reflow Sıcaklığı (°C)

260

Seated Heightmax

2 mm

Neg Supply Voltagemax Vsup

-5 V

Package Body Material

PLASTIC/EPOXY

Package Shape

RECTANGULAR

Turn Off Delay Time

75 ns

Package Style

SMALL OUTLINE, SHRINK PITCH

Ihs Manufacturer

NEXPERIA

Number Of Output Lines

2

Switchon Timemax

72 ns

Terminal Pozisyonu

DUAL

Propagation Delay

18 ns

REACH Uyumluluk Kodu

compliant

Rohs Code

Yes

Offstate Isolationnom

50 dB

Supply Voltagemax Vsup

5 V

Neg Supply Voltagenom Vsup

-4.5 V

Analog Ic Other Type

DIFFERENTIAL MULTIPLEXER

Technology

CMOS

Onstate Resistance Matchnom

6 Ω

Temperature Grade

AUTOMOTIVE

Fonksiyon Sayısı

1

Jesd30 Code

R-PDSO-G16

Min. Çalışma Sıcaklığı

-40 °C

Operating Supply Voltage

5 V

Operating Temperaturemin

-40 °C

Part Life Cycle Code

Not Recommended

Moisture Sensitivity Levels

1

Min Supply Voltage

4.5 V

Genişlik

5.3 mm

Throw Configuration

SP4T

Operating Temperaturemax

125 °C

Operating Supply Current

320 µA

Neg Supply Voltagemin Vsup

-1 V

Üretici Parça No

74HCT4052DB

Package Description

SSOP-16

Risk Rank

5.03

Bandwidth

180 MHz
