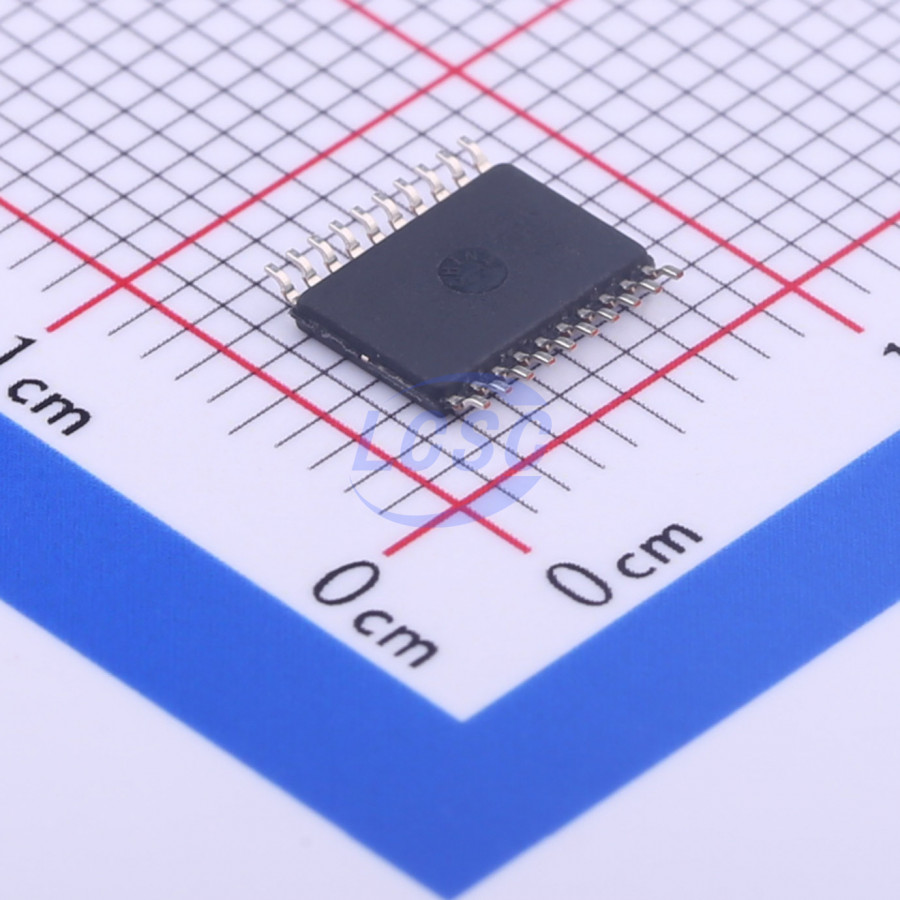

74HCT273PW

Teknik Özellikler

Package Code

TSSOP

Part Life Cycle Code

Active

Family

HCT

Logic Function

D-Type, Flip-Flop

Fonksiyon Sayısı

1

Propagation Delay

15 ns

Kurşunsuz

Lead Free

Number Of Output Lines

8

Package Description

TSSOP-20

Logic Ic Type

D FLIP-FLOP

Package Style

SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

Number Of Bits

8

Number Of Circuits

1

Output Polarity

TRUE

Jesd30 Code

R-PDSO-G20

Supply Voltagemin Vsup

4.5 V

Max Supply Voltage

5.5 V

Min. Çalışma Sıcaklığı

-40 °C

Operating Supply Voltage

5 V

Quiescent Current

8 µA

Supply Voltagemax Vsup

5.5 V

Min Supply Voltage

4.5 V

Risk Rank

5.02

Fmaxmin

20 MHz

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Propagation Delay Tpd

45 ns

Genişlik

4.5 mm

Reflow Temperaturemax S

30

Load Capacitance Cl

50 pF

Contact Plating

Gold

RoHS

Compliant

Package Body Material

PLASTIC/EPOXY

Yüzey Montaj

YES

HTS Kodu

8542.39.00.01

Montaj

Surface Mount

Terminal Adımı

0.65 mm

Moisture Sensitivity Levels

1

Terminal Formu

GULL WING

Polarity

Non-Inverting

JESD-609 Kodu

e4
