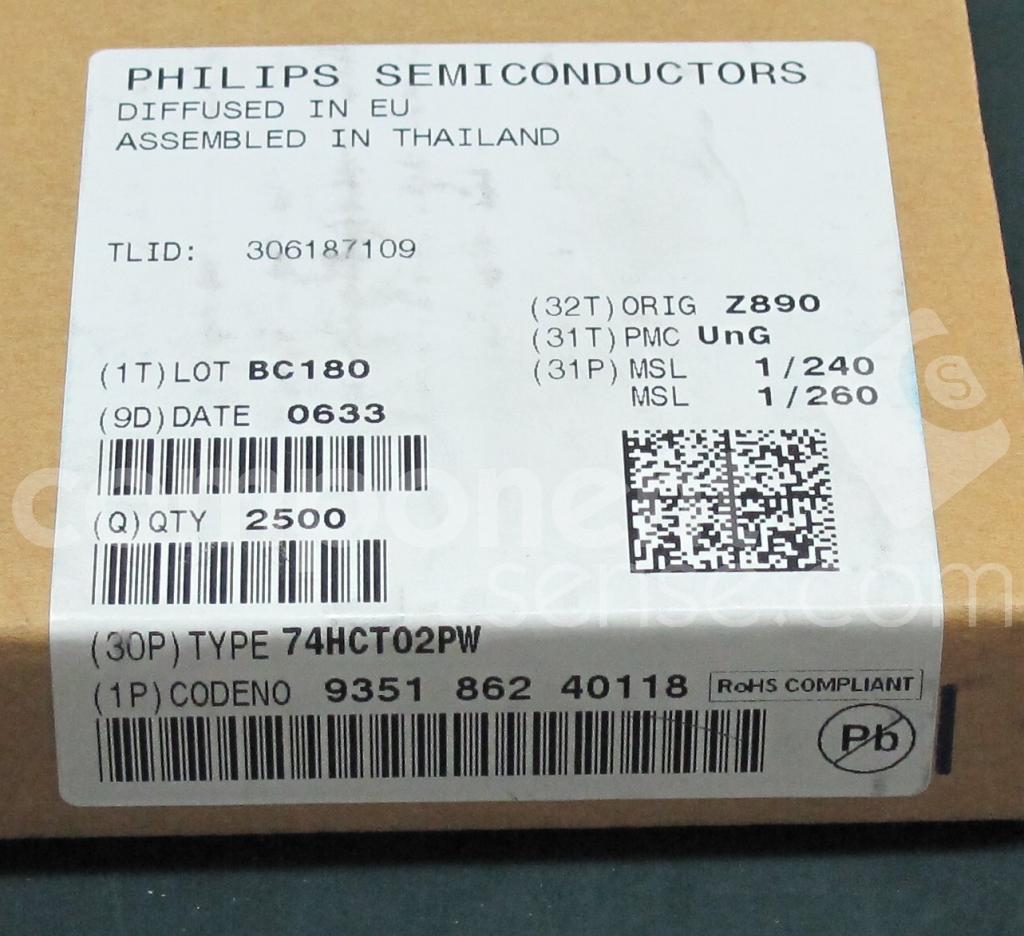

74HCT02PW

Teknik Özellikler

Jesd30 Code

R-PDSO-G14

Technology

CMOS

Number Of Input Lines

2

Pin Sayısı

14

REACH Uyumluluk Kodu

unknown

Number Of Gates

4

Supply Voltagenom Vsup

5 V

Logic Ic Type

NOR GATE

Min. Çalışma Sıcaklığı

-40 °C

Supply Voltagemin Vsup

4.5 V

Kurşunsuz

Lead Free

Package Body Material

PLASTIC/EPOXY

Package Description

4.40 MM, PLASTIC, MO-153, SOT402-1, TSSOP-14

RoHS

Compliant

Propagation Delay

9 ns

Max Iol

0.004 A

Reflow Temperaturemax S

30

Seated Heightmax

1.1 mm

Üretici Parça No

74HCT02PW

Supply Voltagemax Vsup

5.5 V

Package Equivalence Code

TSSOP14,.25

Moisture Sensitivity Levels

1

Risk Rank

2.97

Yüzey Montaj

YES

Number Of Terminals

14

Terminal Formu

GULL WING

Gerilim

5 V

Terminal Pozisyonu

DUAL

Load Capacitance Cl

50 pF

Power Supplies

5 V

JESD-609 Kodu

e4

Packing Method

TUBE

Part Life Cycle Code

Transferred

Temperature Grade

AUTOMOTIVE

Part Package Code

TSSOP

Qualification Status

Not Qualified

Min Supply Voltage

4.5 V

Max Supply Voltage

5.5 V

Tepe Reflow Sıcaklığı (°C)

260

Number Of Inputs

2
