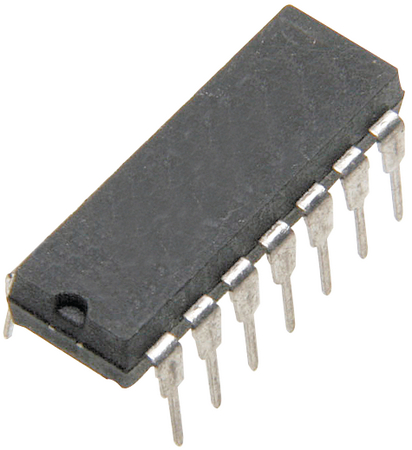

74HC74N

Teknik Özellikler

Pin Sayısı

14

Montaj

Through Hole

Low Level Output Current

5.2 mA

Number Of Terminals

14

Polarity

Non-Inverting

Max Iol

0.004 A

Max Frequency

24 MHz

Package Body Material

PLASTIC/EPOXY

RoHS

Compliant

Number Of Gates

2

Packing Method

TUBE

Technology

CMOS

Package Equivalence Code

DIP14,.3

Clockedge Trigger Type

Positive Edge

Number Of Bits

2

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Output Current

5.2 mA

Uzunluk

19.5 mm

Max Supply Voltage

6 V

Logic Function

D-Type

Package Code

DIP

Propagation Delay

300 ns

Operating Temperaturemin

-40 °C

Üretici Parça No

74HC74N

Package Description

DIP, DIP14,.3

Reach Svhc

No SVHC

Jesd30 Code

R-PDIP-T14

JESD-609 Kodu

e4

Terminal Formu

THROUGH-HOLE

Operating Supply Voltage

5 V

Trigger Type

POSITIVE EDGE

Kurşunsuz

Lead Free

Yüzey Montaj

NO

Maks. Çalışma Sıcaklığı

125 °C

Radyasyon Dayanımı

No

High Level Output Current

-5.2 mA

Max

20000000 Hz

Rohs Code

Yes

Operating Temperaturemax

125 °C

Package Shape

RECTANGULAR
