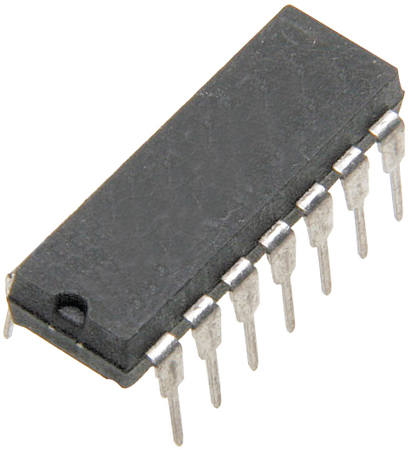

74HC08N

Teknik Özellikler

Package Equivalence Code

DIP14,.3

Min Supply Voltage

2 V

Operating Temperaturemax

125 °C

Supply Voltagemin Vsup

2 V

Part Package Code

MO-001

Max Iol

0.004 A

Propagation Delay

23 ns

Package Style

IN-LINE

High Level Output Current

-5.2 mA

Pin Sayısı

14

Fonksiyon Sayısı

4

Temperature Grade

AUTOMOTIVE

Technology

CMOS

Output Voltage

6 V

Maks. Çalışma Sıcaklığı

125 °C

Ihs Manufacturer

NXP SEMICONDUCTORS

Seated Heightmax

4.2 mm

Quiescent Current

2 µA

Jesd30 Code

R-PDIP-T14

Terminal Formu

THROUGH-HOLE

Max Supply Voltage

6 V

Number Of Circuits

4

Number Of Elements

4

Family

HC/UH

Kurşunsuz

Lead Free

Kurşunsuz Kodu

Yes

Qualification Status

Not Qualified

Min. Çalışma Sıcaklığı

-40 °C

ECCN Kodu

EAR99

Radyasyon Dayanımı

No

RoHS

Compliant

Output Current

5.2 mA

REACH Uyumluluk Kodu

unknown

Genişlik

7.62 mm

Terminal Pozisyonu

DUAL

Number Of Gates

4

Number Of Inputs

2

Power Supplies

2/6 V

Package Body Material

PLASTIC/EPOXY

Packing Method

TUBE
