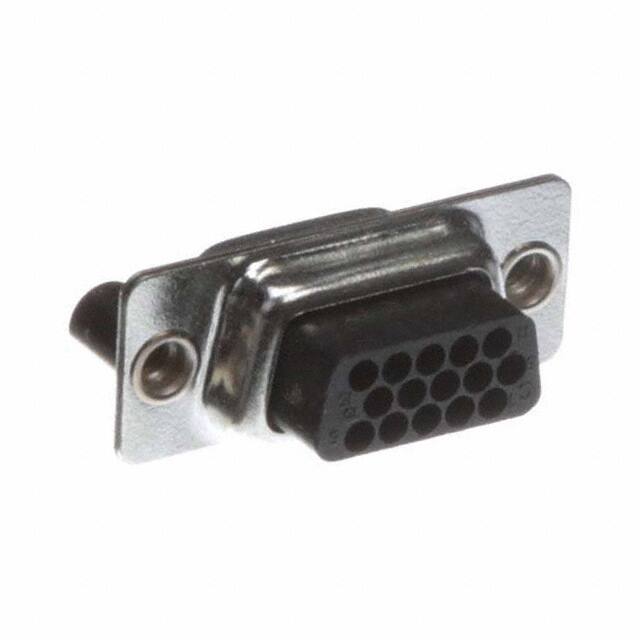

180-015-272L030

Teknik Özellikler

Gender

Female

Özellikler

Shielded

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Termination

Gold (Au) - with Nickel (Ni) barrier

Filter Feature

NO

Çalışma Sıcaklığı

-50°C~100°C

Contact Finish Mating

GOLD OVER NICKEL

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Mil Conformance

NO

Total Number Of Contacts

15

Ambalaj

Tray

Note

Contacts Not Included

Din Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Shell Material Finish

Steel, Tin Plated

Flange Feature

Mating Side (4-40)

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Iec Conformance

NO

Empty Shell

YES

Connector Type

Receptacle for Female Contacts

Shell Finish

TIN

Pozisyon Sayısı

15

Seri

180

Montaj

Free Hanging

Fabrika Tedarik Süresi

14 Weeks

Yayın Yılı

2008

Termination Type

CRIMP

Shell Size Connector Layout

1 DE E High Density

Insulation Materials

GLASS FILLED POLYBUTYLENE TEREPHTHALATE/NYLON66

Parça Durumu

Active

Contact Materials

BRASS

Mixed Contacts

NO

Contact Type

Signal

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

3

Connector Style

D-Sub, High Density
