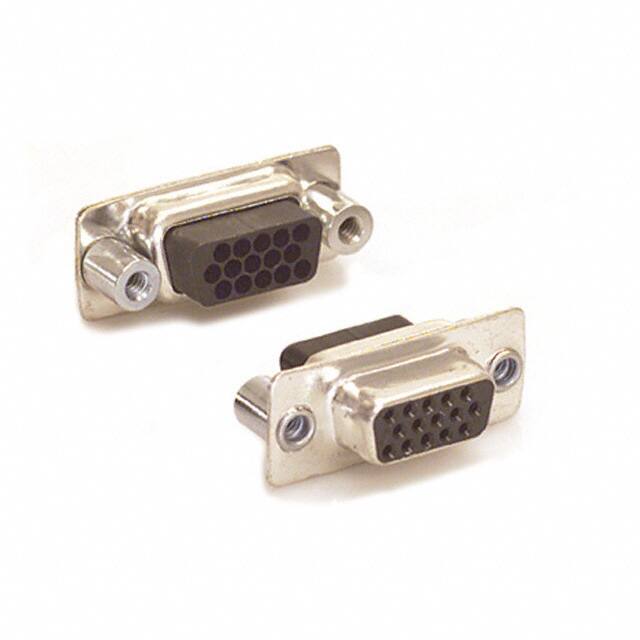

180-015-272L020

Teknik Özellikler

Contact Type

Signal

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

3

Contact Materials

BRASS

Mixed Contacts

NO

Connector Style

D-Sub, High Density

Termination Type

CRIMP

Fabrika Tedarik Süresi

14 Weeks

Yayın Yılı

2008

Parça Durumu

Active

Shell Size Connector Layout

1 DE E High Density

Insulation Materials

GLASS FILLED POLYBUTYLENE TEREPHTHALATE/NYLON66

Flange Feature

Cable Side (4-40)

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Iec Conformance

NO

Empty Shell

YES

Din Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Shell Material Finish

Steel, Tin Plated

Shell Finish

TIN

Pozisyon Sayısı

15

Seri

180

Montaj

Free Hanging

Connector Type

Receptacle for Female Contacts

Çalışma Sıcaklığı

-50°C~100°C

Contact Finish Mating

GOLD OVER NICKEL

Total Number Of Contacts

15

Option

GENERAL PURPOSE

Kurşunsuz Kodu

yes

Mil Conformance

NO

Note

Contacts Not Included

Ambalaj

Tray

Gender

Female

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Termination

Gold (Au) - with Nickel (Ni) barrier

Özellikler

Shielded

Filter Feature

NO
