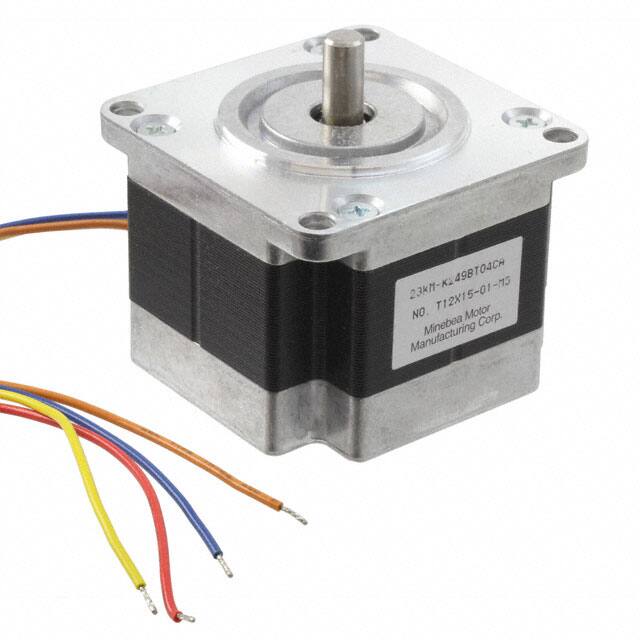

23KM-K249BT04CA

Teknik Özellikler

Seri

23KM

Steps Per Revolution

200

Terminal

Wire Leads

Nema Frame Size

23

Yayın Yılı

2008

Torque Holding Ozin Mnm

76.5 / 540

Step Angle

1.8°

Coilresistance

2.4Ohm

Mounting Hole Spacing

1.856 (47.14mm)

Terminal Stili

Wire Leads

Coil Type

Bipolar

Weight

1.1lbs 499g

RoHS Durumu

RoHS Compliant

Özellikler

Flatted Shaft

Tip

Hybrid

Accuracy

±5%

Diameter Shaft

0.315 (8.00mm)

Parça Durumu

Active

Boyut / Ölçü

Square - 2.220 x 2.220 56.40mmx56.40mm

Nominal Gerilim

24VDC

Length Shaft And Bearing

0.551 14.00mm

Fabrika Tedarik Süresi

8 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)
