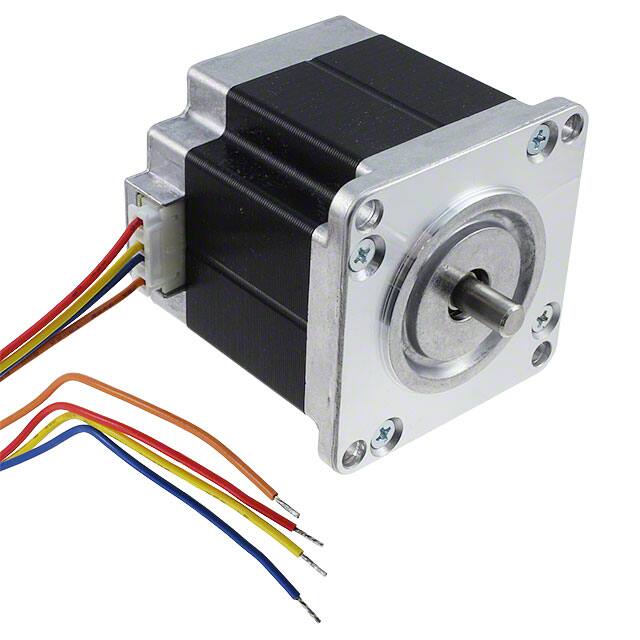

23KM-K041BT03CA

Teknik Özellikler

Steps Per Revolution

200

Seri

23KM

Torque Holding Ozin Mnm

169.53 / 1197

Yayın Yılı

2012

Nema Frame Size

23

Step Angle

1.8°

Coilresistance

1Ohms

Rotor Inertia

36gcm2

Terminal Stili

Wire Leads

Mounting Hole Spacing

1.856 (47.14mm)

Accuracy

±5%

Tip

Hybrid

Özellikler

Flatted Shaft

Coil Type

Bipolar

Parça Durumu

Obsolete

Diameter Shaft

0.236 (6.00mm)

Nominal Gerilim

36VDC

Boyut / Ölçü

Square - 2.220 x 2.220 56.40mmx56.40mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Length Shaft And Bearing

0.453 11.50mm
