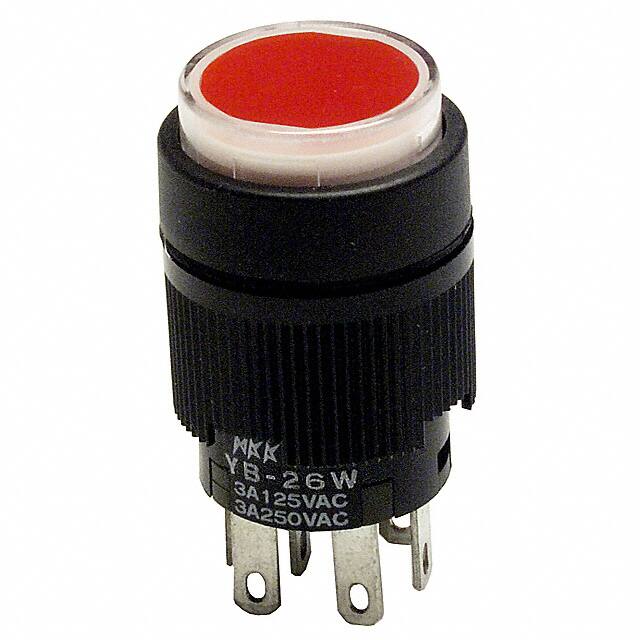

YB26WCKW01-5C-JC

Teknik Özellikler

ECCN Kodu

EAR99

Illumination Color

Red

Voltage Rated Dc

30V

Terminal

Solder

Flammability Rating

UL94 V-0

Ratings

Dust Tight, IP65, Water Resistant

Fabrika Tedarik Süresi

5 Weeks

Switch Function

On-On

Montaj Tipi

Panel Mount, Front

Electricallife

100,000 Cycles

Kapasitans

0F

Montaj

Front, Panel

Kurşunsuz Kodu

yes

Current Rating Amps

3A AC/DC

Orientation

Vertical

REACH Uyumluluk Kodu

unknown

Voltage Rated Ac

125V

Ingress Protection

IP65 - Dust Tight, Water Resistant

Housing Material

Polyamide

Çap

18mm

RoHS Durumu

ROHS3 Compliant

Mechanical Life

200,000 Cycles

Özellikler

Epoxy Sealed Terminals

Illumination Type

LED

Contact Materials

Silver

Illumination Type Color

LED, Red

Illumination Voltage Nominal

1.9VDC

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Akım Değeri

3A

Contact Current Rating

3A

Tip

Standard, Illuminated

Panel Cutout Dimensions

Circular - 16.00mm Dia

Yayın Yılı

2005

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Type

Round, Button

Ambalaj

Bulk

Circuit

DPDT

Kurşunsuz

Contains Lead

Color Actuatorcap

Clear (Red Filter/Diffuser)

Parça Durumu

Active
