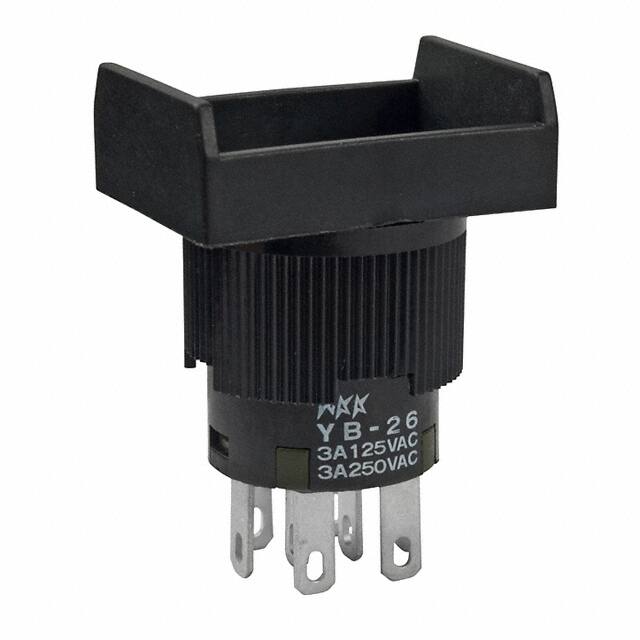

YB26RKW01

Teknik Özellikler

Dielectric Withstanding Voltage

1500VAC V

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Type

Plunger for Cap

Yayın Yılı

2011

Panel Cutout Dimensions

Circular - 16.00mm Dia

Tip

Standard

Seri

YB

Çalışma Sıcaklığı

-25°C~70°C

Actuator Length

0.327 inch

Parça Durumu

Active

Kurşunsuz

Contains Lead

Circuit

DPDT

RoHS Durumu

ROHS3 Compliant

Contact Plating

Silver

Housing Material

Polyamide

Contact Resistance

0.05mOhm

Akım Değeri

3A

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Contact Currentdcmax

3A

Özellikler

Epoxy Sealed Terminals

Mechanical Life

200,000 Cycles

Contact Currentacmax

3A

Montaj

Front, Panel

Kurşunsuz Kodu

yes

Montaj Tipi

Panel Mount, Front

Electricallife

100,000 Cycles

Terminal Material

PHOSPHOR BRONZE

Pcb Hole Count

8

Switch Function

On-On

Fabrika Tedarik Süresi

14 Weeks

Voltage Rated Ac

125V

Insulation Resistance

200000000Ohm

Orientation

Vertical

Actuator Travel

1.4986 mm

Current Rating Amps

3A AC/DC

Contact Ac Max Rating R Load

3A@250VAC

Flammability Rating

UL94 V-0

Terminal

Solder

Voltage Rated Dc

30V
