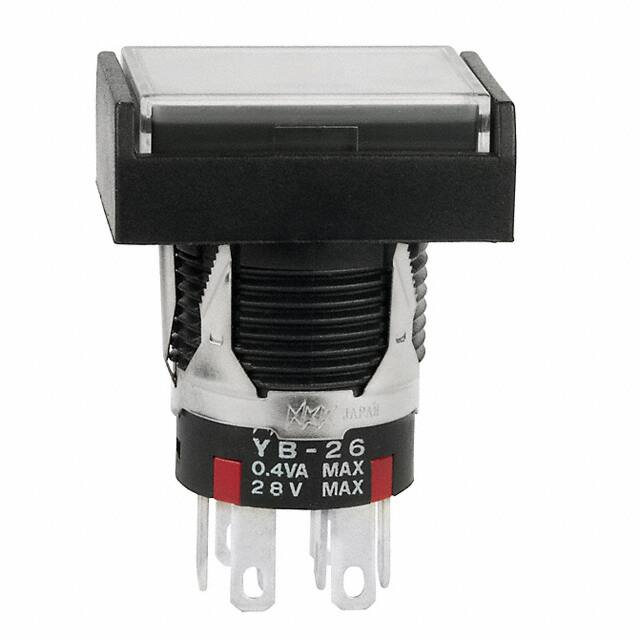

YB26NKG01-1CF02-JA

Teknik Özellikler

Kurşunsuz

Contains Lead

Circuit

DPDT

Seri

YB

Çalışma Sıcaklığı

-25°C~50°C

Parça Durumu

Active

Color Actuatorcap

Clear (Black Filter/Diffuser)

Yayın Yılı

2011

Panel Cutout Dimensions

Circular - 16.00mm Dia

Tip

Standard, Illuminated

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Type

Rectangular, Button

Illumination Type Color

LED, Red/Green

Contact Materials

Brass

Illumination Type

LED

Özellikler

Epoxy Sealed Terminals

Mechanical Life

200,000 Cycles

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Illumination Voltage Nominal

2VDC

Housing Material

Polyamide

RoHS Durumu

ROHS3 Compliant

Max Voltage Rating Ac

28V

Contact Plating

Gold

Orientation

Vertical

Current Rating Amps

0.4VA AC/DC

Uzunluk

18mm

Depth

24mm

Voltage Rated Ac

28V

Max Current Rating

100mA

REACH Uyumluluk Kodu

unknown

Switch Function

On-On

Fabrika Tedarik Süresi

14 Weeks

Power Rating

400mW

Montaj

Panel, Snap in

Kurşunsuz Kodu

yes

Montaj Tipi

Panel Mount, Snap-In

Electricallife

100,000 Cycles

Terminal

Solder

Voltage Rated Dc

28V

Max Voltage Rating Dc

28V
