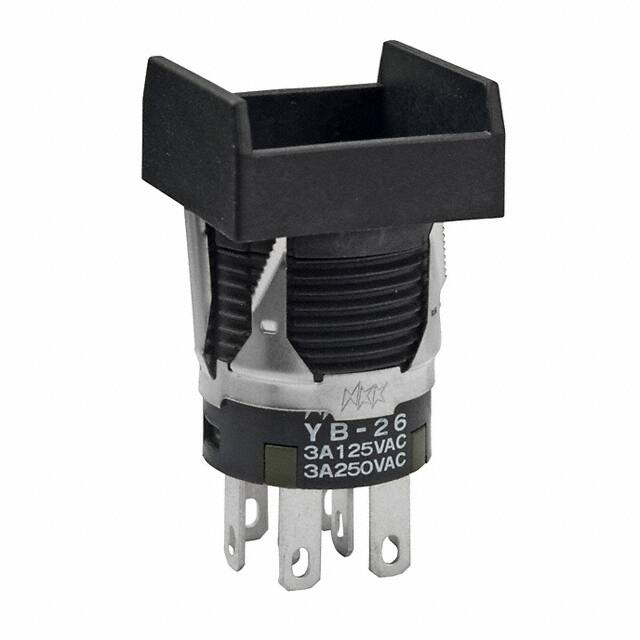

YB26KKW01

Teknik Özellikler

Contact Currentdcmax

3A

Özellikler

Epoxy Sealed Terminals

Mechanical Life

200,000 Cycles

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Akım Değeri

3A

Contact Resistance

0.05mOhm

Housing Material

Polyamide

Contact Plating

Silver

RoHS Durumu

ROHS3 Compliant

Circuit

DPDT

Bushing Length

0.37 inch

Actuator Length

0.327 inch

Parça Durumu

Active

Seri

YB

Çalışma Sıcaklığı

-25°C~70°C

Tip

Standard

Yayın Yılı

2011

Panel Cutout Dimensions

Circular - 16.00mm Dia

Dielectric Withstanding Voltage

1500VAC V

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Type

Plunger for Cap

Life Cycles

200000 cycles

Terminal

Solder

Voltage Rated Dc

30V

Contact Voltageacmax

250V

Flammability Rating

UL94 V-0

Contact Ac Max Rating R Load

3A@250VAC

Actuator Travel

1.4986 mm

Body Height

7.5946mm

Current Rating Amps

3A AC/DC

Voltage Rated Ac

125V

Insulation Resistance

200000000Ohm

Switch Function

On-On

Fabrika Tedarik Süresi

14 Weeks

Pcb Hole Count

8

Montaj Tipi

Panel Mount, Snap-In

Electricallife

100,000 Cycles

Terminal Material

PHOSPHOR BRONZE

Contact Currentacmax

3A
