Adet bazlı fiyat
- 1+ adet$19.74
- 10+ adet$18.62
- 100+ adet$17.57
- 500+ adet$16.57
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

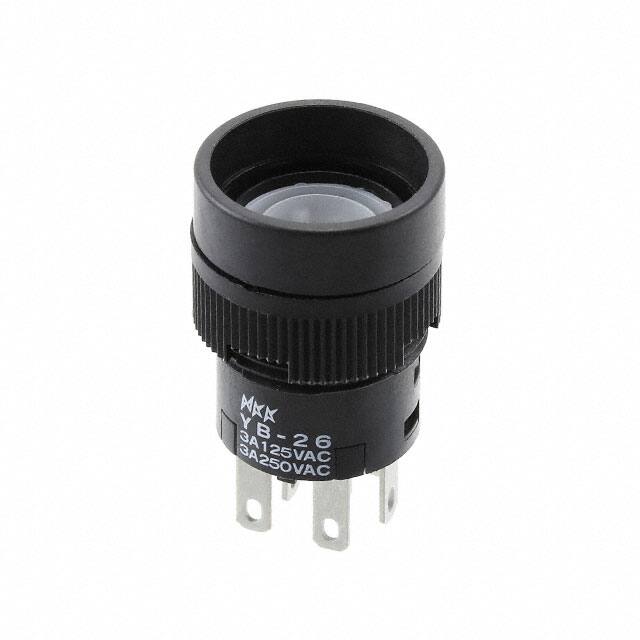

Teknik Özellikler
- Life Cycles
- 200000 cycles
- Voltage Rated Dc
- 30V
- Contact Voltageacmax
- 250V
- Terminal
- Solder
- Flammability Rating
- UL94 V-0
- Contact Ac Max Rating R Load
- 3A@250VAC
- Current Rating Amps
- 3A AC/DC
- Body Height
- 7.5946mm
- Actuator Travel
- 1.4986 mm
- Insulation Resistance
- 200000000Ohm
- Voltage Rated Ac
- 125V
- Fabrika Tedarik Süresi
- 14 Weeks
- Switch Function
- On-On
- Pcb Hole Count
- 8
- Terminal Material
- PHOSPHOR BRONZE
- Electricallife
- 100,000 Cycles
- Montaj Tipi
- Panel Mount, Front
- Kurşunsuz Kodu
- yes
- Montaj
- Front, Panel
- Contact Currentacmax
- 3A
- Mechanical Life
- 200,000 Cycles
- Contact Currentdcmax
- 3A
- Özellikler
- Epoxy Sealed Terminals
- Terminal Stili
- Solder, Quick Connect - 0.110 (2.8mm)
- Akım Değeri
- 3A
- Contact Resistance
- 0.05mOhm
- Housing Material
- Polyamide
- Contact Plating
- Silver
- RoHS Durumu
- ROHS3 Compliant
- Circuit
- DPDT
- Kurşunsuz
- Lead Free
- Bushing Length
- 0.37 inch
- Actuator Length
- 0.347 inch
- Parça Durumu
- Active
- Çalışma Sıcaklığı
- -25°C~70°C
- Seri
- YB
- Tip
- Standard
- Panel Cutout Dimensions
- Circular - 16.00mm Dia
- Yayın Yılı
- 2011
- Actuator Type
- Plunger for Cap
