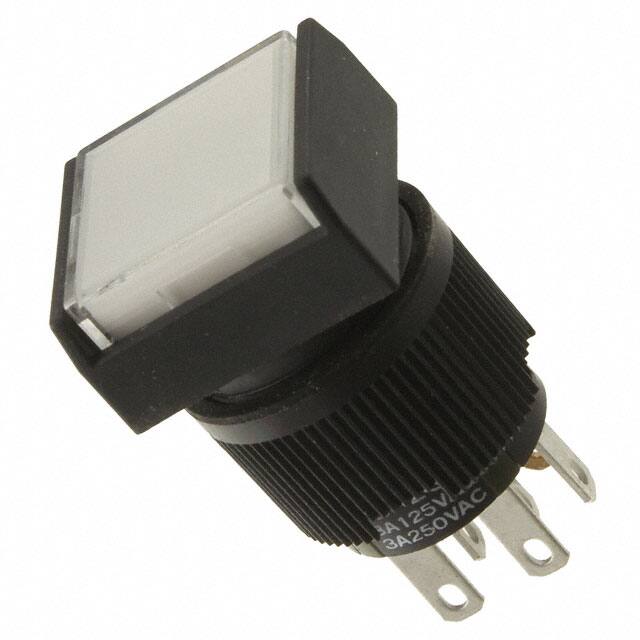

YB25WSKW01-6F-JB

Teknik Özellikler

Switch Function

On-Mom

Fabrika Tedarik Süresi

14 Weeks

Montaj Tipi

Panel Mount, Front

Electricallife

100,000 Cycles

Montaj

Front, Panel

Kurşunsuz Kodu

yes

Orientation

Vertical

Current Rating Amps

3A AC/DC

Voltage Rated Ac

125V

Illumination Color

Green

ECCN Kodu

EAR99

Terminal

Solder

Voltage Rated Dc

30V

Flammability Rating

UL94 V-0

Ratings

Dust Tight, IP65, Water Resistant

Tip

Standard, Illuminated

Contact Current Rating

3A

Yayın Yılı

2006

Panel Cutout Dimensions

Circular - 16.00mm Dia

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Type

Square, Button

Circuit

DPDT

Kurşunsuz

Contains Lead

Parça Durumu

Active

Color Actuatorcap

Clear (White Filter/Diffuser)

Seri

YB

Çalışma Sıcaklığı

-25°C~50°C

Ingress Protection

IP65 - Dust Tight, Water Resistant

Housing Material

Polyamide

Contact Plating

Silver

RoHS Durumu

ROHS3 Compliant

Özellikler

Epoxy Sealed Terminals

Mechanical Life

1,000,000 Cycles

Illumination Type Color

LED, Green

Illumination Type

LED

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Illumination Voltage Nominal

3.3VDC

Akım Değeri

3A
