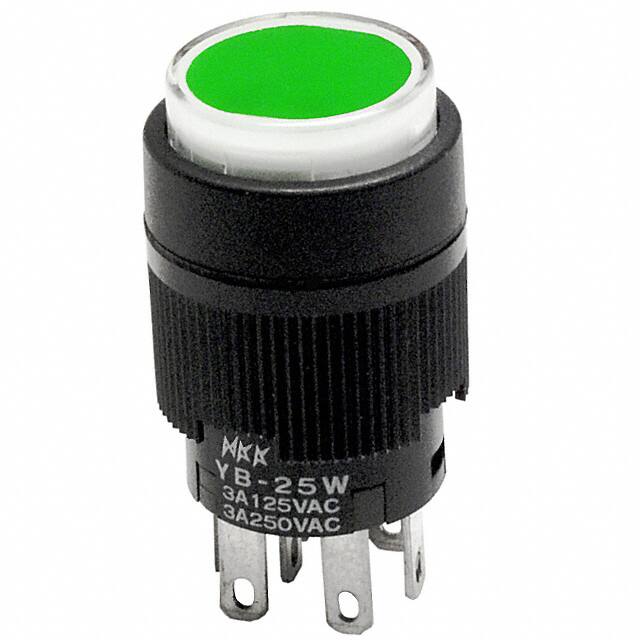

YB25WCKW01-5F-JF

Teknik Özellikler

Illumination Color

Green

ECCN Kodu

EAR99

Terminal

Solder

Voltage Rated Dc

30V

Flammability Rating

UL94 V-0

Ratings

Dust Tight, IP65, Water Resistant

Reach Svhc

No SVHC

Switch Function

On-Mom

Fabrika Tedarik Süresi

14 Weeks

Electricallife

100,000 Cycles

Montaj Tipi

Panel Mount, Front

Kurşunsuz Kodu

yes

Montaj

Front, Panel

Orientation

Vertical

Current Rating Amps

3A AC/DC

Voltage Rated Ac

125V

Ingress Protection

IP65 - Dust Tight, Water Resistant

Housing Material

Polyamide

Çap

18mm

RoHS Durumu

ROHS3 Compliant

Özellikler

Epoxy Sealed Terminals

Mechanical Life

1,000,000 Cycles

Illumination Type Color

LED, Green

Contact Materials

Silver

Illumination Type

LED

Illumination Voltage Nominal

2.2VDC

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Akım Değeri

3A

Tip

Standard, Illuminated

Contact Current Rating

3A

Yayın Yılı

2011

Panel Cutout Dimensions

Circular - 16.00mm Dia

Ambalaj

Bulk

Actuator Type

Round, Button

Nem Hassasiyeti (MSL)

1 (Unlimited)

Circuit

DPDT

Kurşunsuz

Contains Lead

Parça Durumu

Active

Color Actuatorcap

Clear (Green Filter/Diffuser)

Seri

YB
