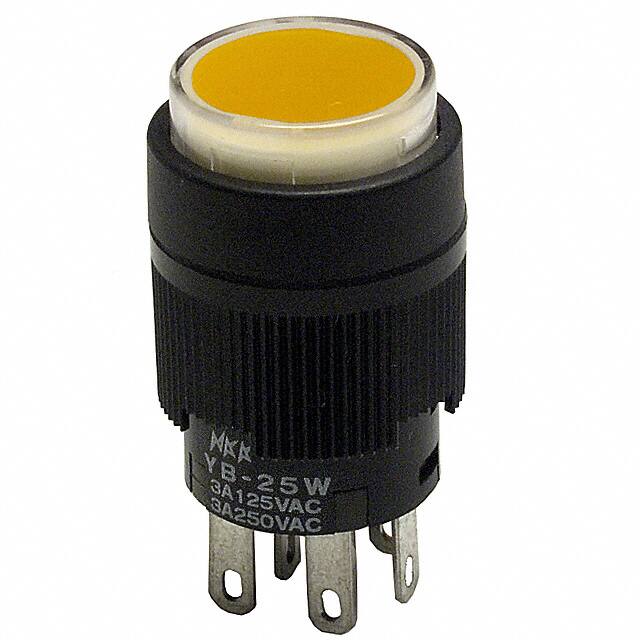

YB25WCKW01-5D-JD

Teknik Özellikler

Ingress Protection

IP65 - Dust Tight, Water Resistant

Housing Material

Polyamide

Çap

18mm

RoHS Durumu

ROHS3 Compliant

Özellikler

Epoxy Sealed Terminals

Mechanical Life

1,000,000 Cycles

Illumination Type Color

LED, Amber

Contact Materials

Silver

Illumination Type

Illuminated, LED

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Illumination Voltage Nominal

2VDC

Akım Değeri

3A

Contact Current Rating

3A

Tip

Standard, Illuminated

Yayın Yılı

2005

Panel Cutout Dimensions

Circular - 16.00mm Dia

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Type

Round, Button

Circuit

DPDT

Kurşunsuz

Contains Lead

Parça Durumu

Active

Color Actuatorcap

Clear (Amber Filter/Diffuser)

Seri

YB

Çalışma Sıcaklığı

-25°C~50°C

Illumination Color

Orange

ECCN Kodu

EAR99

Terminal

Solder

Voltage Rated Dc

30V

Flammability Rating

UL94 V-0

Ratings

Dust Tight, IP65, Water Resistant

Life Cycles

1e+06 cycles

Switch Function

On-Mom

Fabrika Tedarik Süresi

14 Weeks

Montaj Tipi

Panel Mount, Front

Electricallife

100,000 Cycles

Montaj

Front, Panel

Kurşunsuz Kodu

yes

Orientation

Vertical

Current Rating Amps

3A AC/DC
