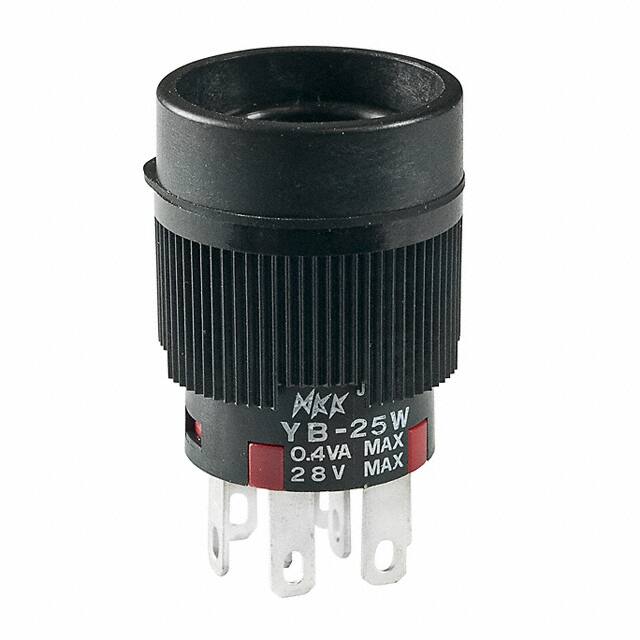

YB25WCKG01

Teknik Özellikler

Actuator Type

Plunger for Cap

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

1500VAC V

Ambalaj

Bulk

Contact Function

ON-(ON)

Panel Cutout Dimensions

Circular - 16.00mm Dia

Yayın Yılı

2011

Tip

Standard

Contact Current Rating

3A

Çalışma Sıcaklığı

-25°C~70°C

Seri

YB

Actuator Length

0.347 inch

Parça Durumu

Active

Kurşunsuz

Lead Free

Bushing Length

0.37 inch

Circuit

DPDT

RoHS Durumu

ROHS3 Compliant

Contact Plating

Gold

Housing Material

Polyamide

Contact Resistance

0.1mOhm

Ingress Protection

IP65 - Dust Tight, Water Resistant

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Mechanical Life

1,000,000 Cycles

Özellikler

Epoxy Sealed Terminals

Power Rating

400mW

Montaj

Front, Panel

Kurşunsuz Kodu

yes

Terminal Material

PHOSPHOR BRONZE

Electricallife

100,000 Cycles

Montaj Tipi

Panel Mount, Front

Pcb Hole Count

8

Fabrika Tedarik Süresi

14 Weeks

Switch Function

On-Mom

Insulation Resistance

200000000Ohm

Voltage Rated Ac

28V

Center Contact Material

BRASS

Current Rating Amps

0.4VA AC/DC

Body Height

7.5946mm

Actuator Travel

1.4986 mm

Ratings

Dust Tight, IP65, Water Resistant
