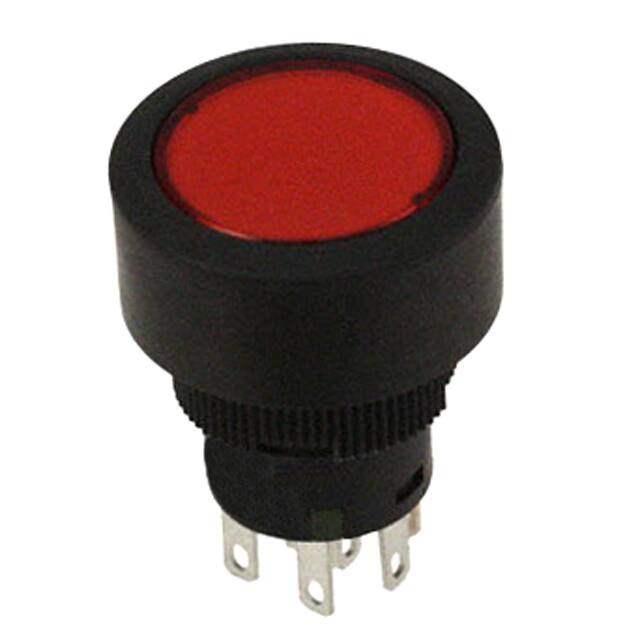

YB225CWCKW01-5C-CB

Teknik Özellikler

Montaj

Front, Panel, Snap in

Illumination Type

LED

Color Actuatorcap

Red (White Filter/Diffuser)

Terminal

Solder

Montaj Tipi

Panel Mount, Front

Ambalaj

Bulk

Illumination Type Color

LED, Red

Flammability Rating

UL94 V-0

Illumination Voltage Nominal

1.9VDC

RoHS Durumu

ROHS3 Compliant

Electricallife

100,000 Cycles

Actuator Type

Round, Button, Flush

Switch Function

On-Mom

Tip

Standard, Illuminated

Current Rating Amps

3A AC/DC

Kurşunsuz Kodu

yes

Mechanical Life

1,000,000 Cycles

Parça Durumu

Active

Circuit

DPDT

Life Cycles

1e+06 cycles

Seri

YB2

Özellikler

Epoxy Sealed Terminals

Illumination Color

Red

Ingress Protection

IP65 - Dust Tight, Water Resistant

Panel Cutout Dimensions

Circular - 22.00mm Dia

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Voltage Rated Ac

125V

Akım Değeri

3A

Çalışma Sıcaklığı

-25°C~50°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Renk

Black

ECCN Kodu

EAR99

Yayın Yılı

2011

Voltage Rated Dc

30V

Contact Plating

Silver

Fabrika Tedarik Süresi

14 Weeks

Ratings

Dust Tight, IP65, Water Resistant

Housing Material

Polyamide

REACH Uyumluluk Kodu

unknown
