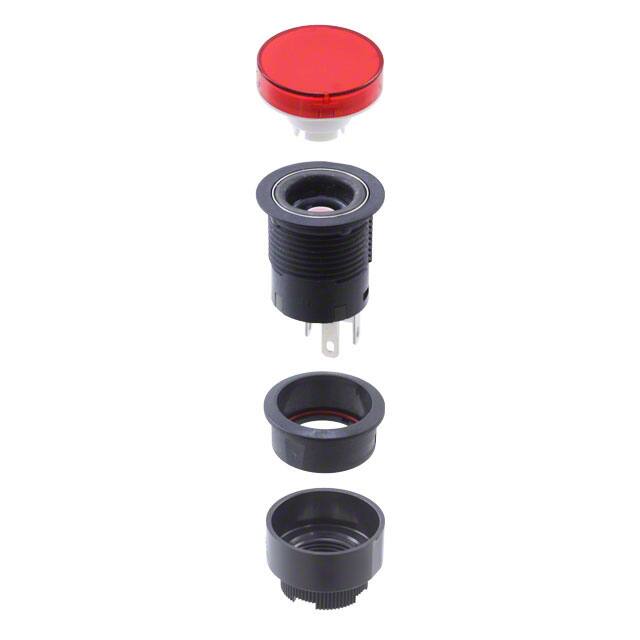

YB216CWCKW01-5C-CB

Teknik Özellikler

Çalışma Sıcaklığı

-25°C~50°C

Renk

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Voltage Rated Dc

30V

Yayın Yılı

2011

Özellikler

Epoxy Sealed Terminals

Illumination Color

Red

Ingress Protection

IP65 - Dust Tight, Water Resistant

Panel Cutout Dimensions

Circular - 22.00mm Dia

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Voltage Rated Ac

125V

Akım Değeri

3A

Ratings

Dust Tight, IP65, Water Resistant

Housing Material

Polyamide

Contact Plating

Silver

Fabrika Tedarik Süresi

14 Weeks

Reach Svhc

No SVHC

Color Actuatorcap

Red (White Filter/Diffuser)

Terminal

Solder

Montaj Tipi

Panel Mount, Front

Ambalaj

Bulk

Illumination Type Color

LED, Red

Flammability Rating

UL94 V-0

Montaj

Front, Panel, Snap in

Illumination Type

LED

Contact Current Rating

3A

Switch Function

On-On

Actuator Type

Round, Button, Flush

Tip

Standard, Illuminated

Current Rating Amps

3A AC/DC

Kurşunsuz Kodu

yes

Mechanical Life

200,000 Cycles

Parça Durumu

Active

Circuit

SPDT

Life Cycles

1e+06 cycles

Seri

YB2

Illumination Voltage Nominal

1.9VDC

Electricallife

100,000 Cycles

RoHS Durumu

ROHS3 Compliant
