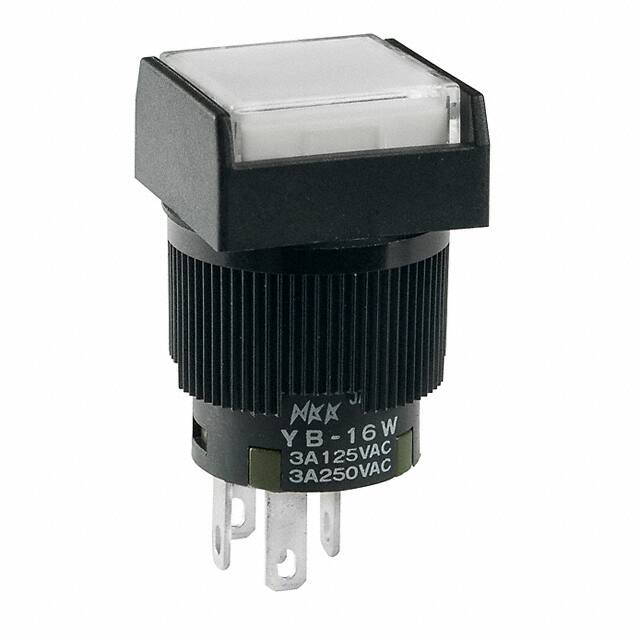

YB16WSKW01-6B-JB

Teknik Özellikler

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Length Termination

0.288 inch

Çalışma Sıcaklığı

-25°C~50°C

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Bushing Diameter

0.63 inch

Panel Cutout Dimensions

Circular - 16.00mm Dia

Ingress Protection

IP65 - Dust Tight, Water Resistant

Orientation

Vertical

Özellikler

Epoxy Sealed Terminals

Ratings

Dust Tight, IP65, Water Resistant

Insulation Resistance

200000000Ohm

Fabrika Tedarik Süresi

14 Weeks

Contact Plating

Gold

Center Contact Material

SILVER ALLOY

Illumination Type Color

LED, White

Montaj Tipi

Panel Mount, Front

Ambalaj

Tray

Color Actuatorcap

Clear (White Filter/Diffuser)

Contact Current Rating

3A

Insulation Materials

DIALLYL PHTHALATE

Illumination Type

LED

Montaj

Front, Panel, Sealed

Seri

YB

Circuit

SPDT

Parça Durumu

Active

Kurşunsuz

Contains Lead

Solderability

HAND

Switch Function

On-On

Actuator Type

Square, Button

Body Color

BLACK

Electricallife

100,000 Cycles

Illumination Voltage Nominal

3.3VDC

Voltage Rated Dc

30V

Yayın Yılı

2011

Akım Değeri

3A

Voltage Rated Ac

125V

Illumination Color

White

Terminal Material

PHOSPHOR BRONZE

Contact Voltageacmax

250V
