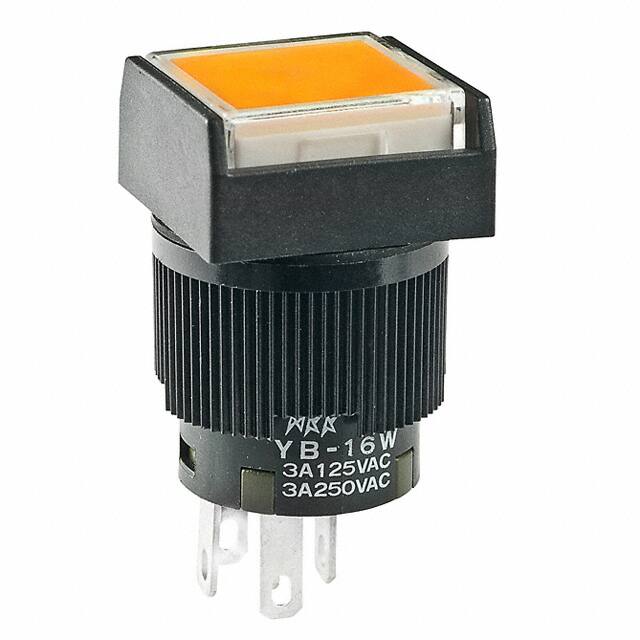

YB16WSKW01-5D-JD

Teknik Özellikler

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Voltage Rated Ac

125V

Akım Değeri

3A

Özellikler

Epoxy Sealed Terminals

Orientation

Vertical

Ingress Protection

IP65 - Dust Tight, Water Resistant

Illumination Color

Orange

Panel Cutout Dimensions

Circular - 16.00mm Dia

ECCN Kodu

EAR99

Voltage Rated Dc

30V

Yayın Yılı

2005

Çalışma Sıcaklığı

-25°C~50°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Plating

Gold

Fabrika Tedarik Süresi

14 Weeks

Ratings

Dust Tight, IP65, Water Resistant

Number Of Poles

1

Contact Current Rating

3A

Montaj

Front, Panel, Sealed

Illumination Type

LED

Terminal

Solder

Ambalaj

Tray

Montaj Tipi

Panel Mount, Front

Illumination Type Color

LED, Amber

Flammability Rating

UL94 V-0

Color Actuatorcap

Clear (Amber Filter/Diffuser)

RoHS Durumu

ROHS3 Compliant

Electricallife

100,000 Cycles

Illumination Voltage Nominal

2VDC

Pozisyon Sayısı

2

Current Rating Amps

3A AC/DC

Mechanical Life

200,000 Cycles

Kurşunsuz Kodu

yes

Kurşunsuz

Contains Lead

Parça Durumu

Active

Circuit

SPDT

Seri

YB

Actuator Type

Square, Button

Switch Function

On-On

Tip

Standard, Illuminated
