Adet bazlı fiyat
- 1+ adet$26.55
- 10+ adet$25.04
- 100+ adet$23.63
- 500+ adet$22.29
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

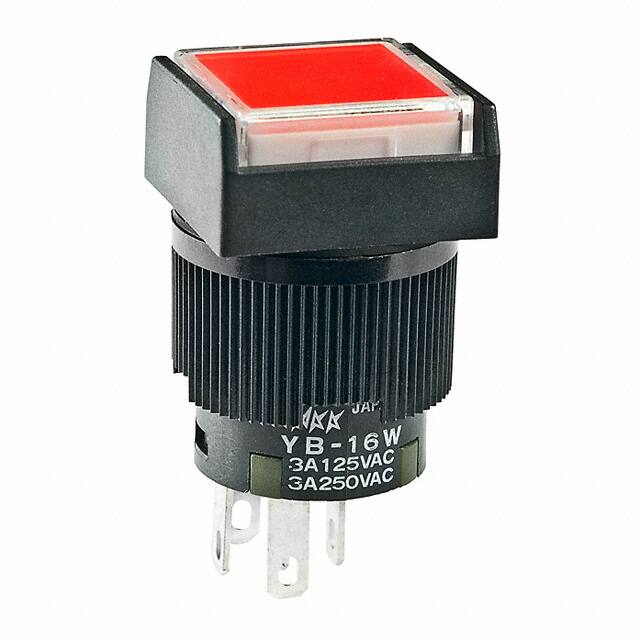

Teknik Özellikler
- Number Of Poles
- 1
- Contact Current Rating
- 3A
- Illumination Type
- LED
- Montaj
- Front, Panel, Sealed
- Illumination Type Color
- LED, Red
- Flammability Rating
- UL94 V-0
- Terminal
- Solder
- Max Voltage Rating Dc
- 30V
- Ambalaj
- Tray
- Montaj Tipi
- Panel Mount, Front
- Contact Materials
- Silver
- Color Actuatorcap
- Clear (Red Filter/Diffuser)
- Max Current Rating
- 3A
- Electricallife
- 100,000 Cycles
- RoHS Durumu
- ROHS3 Compliant
- Pozisyon Sayısı
- 2
- Depth
- 18mm
- Illumination Voltage Nominal
- 1.9VDC
- Parça Durumu
- Active
- Circuit
- SPDT
- Seri
- YB
- Current Rating Amps
- 3A AC/DC
- Kurşunsuz
- Contains Lead
- Kurşunsuz Kodu
- yes
- Mechanical Life
- 200,000 Cycles
- Tip
- Standard, Illuminated
- Switch Function
- On-On
- Actuator Type
- Square, Button
- Voltage Rated Ac
- 125V
- Akım Değeri
- 3A
- Uzunluk
- 18mm
- Terminal Stili
- Solder, Quick Connect - 0.110 (2.8mm)
- Illumination Color
- Red
- Ingress Protection
- IP65 - Dust Tight, Water Resistant
- Panel Cutout Dimensions
- Circular - 16.00mm Dia
- Özellikler
- Epoxy Sealed Terminals
- Orientation
- Vertical
- Voltage Rated Dc
- 30V
- Yayın Yılı
- 2005
- ECCN Kodu
- EAR99
