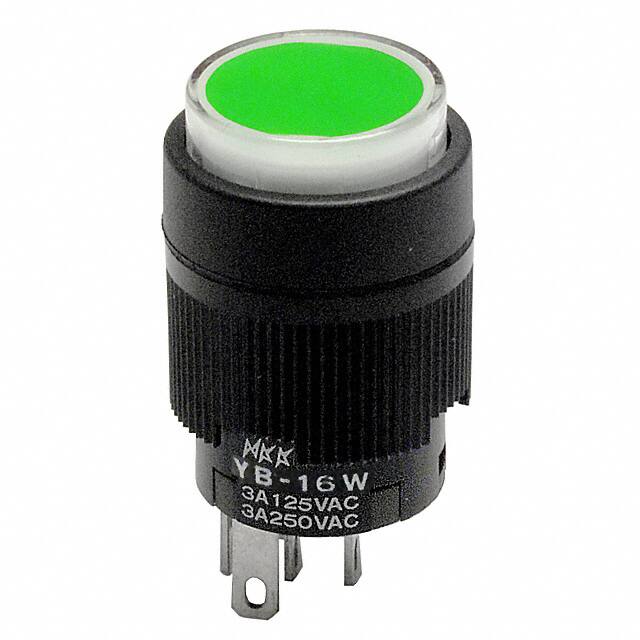

YB16WCKW01-5F-JF

Teknik Özellikler

ECCN Kodu

EAR99

Yayın Yılı

2011

Voltage Rated Dc

30V

Çalışma Sıcaklığı

-25°C~50°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Voltage Rated Ac

125V

Kapasitans

0F

Akım Değeri

3A

Özellikler

Epoxy Sealed Terminals

Orientation

Vertical

Ingress Protection

IP65 - Dust Tight, Water Resistant

Illumination Color

Green

Panel Cutout Dimensions

Circular - 16.00mm Dia

Throw Configuration

DPDT, SPDT

Ratings

Dust Tight, IP65, Water Resistant

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

14 Weeks

Terminal

Solder

Montaj Tipi

Panel Mount, Front

Ambalaj

Bulk

Illumination Type Color

LED, Green

Flammability Rating

UL94 V-0

Contact Materials

Silver

Çap

18mm

Color Actuatorcap

Clear (Green Filter/Diffuser)

Number Of Poles

1

Contact Current Rating

3A

Montaj

Front, Panel, Sealed

Illumination Type

LED

Current Rating Amps

3A AC/DC

Kurşunsuz

Contains Lead

Kurşunsuz Kodu

yes

Mechanical Life

200,000 Cycles

Parça Durumu

Active

Circuit

SPDT

Seri

YB

Switch Function

On-On

Actuator Type

Round, Button

Tip

Standard, Illuminated
