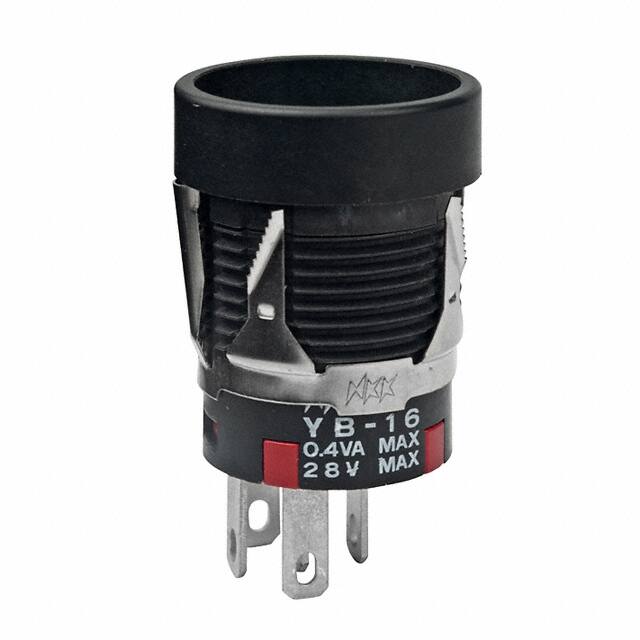

YB16MKG01

Teknik Özellikler

Panel Cutout Dimensions

Circular - 16.00mm Dia

Özellikler

Epoxy Sealed Terminals

Voltage Rated Ac

28V

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Hole Count

5

Çalışma Sıcaklığı

-25°C~70°C

Voltage Rated Dc

28V

Yayın Yılı

2011

Fabrika Tedarik Süresi

14 Weeks

Power Rating

400mW

Contact Plating

Gold

Body Height

7.5946mm

Insulation Resistance

200000000Ohm

Housing Material

Polyamide

Bushing Length

0.37 inch

Terminal Material

PHOSPHOR BRONZE

Montaj

Panel, Snap in

Actuator Travel

1.4986 mm

Actuator Length

0.347 inch

Center Contact Material

BRASS

Dielectric Withstanding Voltage

1500VAC V

Flammability Rating

UL94 V-0

Ambalaj

Bulk

Montaj Tipi

Panel Mount, Snap-In

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Electricallife

100,000 Cycles

Tip

Standard

Switch Function

On-On

Actuator Type

Plunger for Cap

Seri

YB

Life Cycles

100000 cycles

Circuit

SPDT

Parça Durumu

Active

Mechanical Life

200,000 Cycles

Kurşunsuz Kodu

yes

Contact Resistance

0.1mOhm

Current Rating Amps

0.4VA AC/DC
