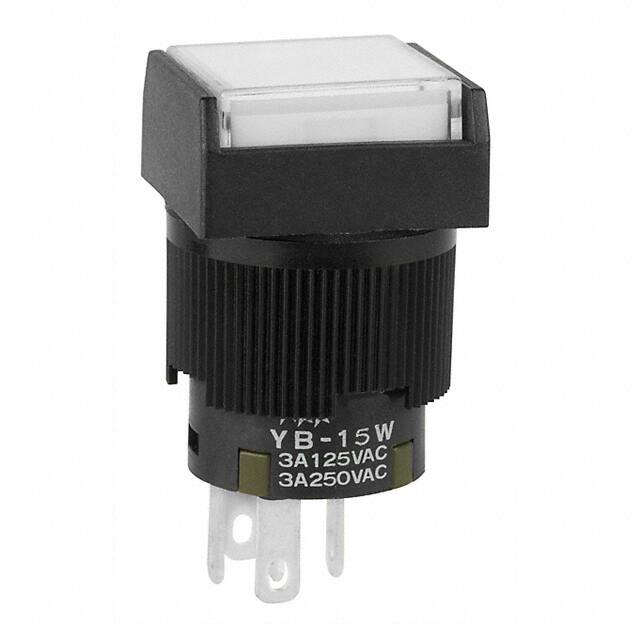

YB15WSKW01-6F-JB

Teknik Özellikler

Voltage Rated Dc

30V

Yayın Yılı

2006

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-25°C~50°C

Akım Değeri

3A

Voltage Rated Ac

125V

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Panel Cutout Dimensions

Circular - 16.00mm Dia

Ingress Protection

IP65 - Dust Tight, Water Resistant

Illumination Color

Green

Orientation

Vertical

Özellikler

Epoxy Sealed Terminals

REACH Uyumluluk Kodu

unknown

Housing Material

Polyamide

Ratings

Dust Tight, IP65, Water Resistant

Fabrika Tedarik Süresi

14 Weeks

Contact Plating

Silver

Flammability Rating

UL94 V-0

Illumination Type Color

LED, Green

Ambalaj

Tray

Montaj Tipi

Panel Mount, Front

Terminal

Solder

Color Actuatorcap

Clear (White Filter/Diffuser)

Contact Current Rating

3A

Illumination Type

LED

Montaj

Front, Panel

Seri

YB

Circuit

SPDT

Parça Durumu

Active

Mechanical Life

1,000,000 Cycles

Kurşunsuz Kodu

yes

Kurşunsuz

Contains Lead

Current Rating Amps

3A AC/DC

Tip

Standard, Illuminated

Switch Function

On-Mom

Actuator Type

Square, Button

Electricallife

100,000 Cycles

RoHS Durumu

ROHS3 Compliant

Illumination Voltage Nominal

3.3VDC
